Product Details:
|
| Machinery Test Report:: | Provided | Liquid Flow Rate: | Customized |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Working Temperature Range: | -30~150℃ |
| Plate Thickness: | 0.5mm,0.6mm,0.7mm,0.8mm,1mm | Product Features: | Energy Saving Long Service Life |
| High Light: | M3 Plate Heat Exchanger,NBR Gasket Plate Heat Exchanger |
||

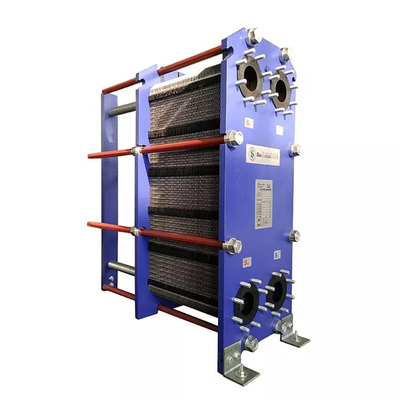

M3 Plate Heat Exchanger With Gasket Heat Exchanger
Description
A plate Heat Exchanger is a unit which transfers heat continuously from one media to another media without adding energy to the process. The basic concept of a plate and frame Heat Exchanger is two liquids flowing on either side of a thin corrugated metal plate so heat may be easily transferred between the two. The plates are compressed by means of tie bolts between a stationary frame part (called the head) and a movable frame part (called the follower). The plate Heat Exchanger efficiency requires less floor space compared to other types of Heat Transfer equipment and is lighter in weight.
Parameter
|
Plate heat exchanger
|
||
|
Material
|
Contact with the product parts
|
SS304,SS316L,SS316
|
|
Non contact product parts
|
SS304
|
|
|
Sealing material
|
Standard
|
NBR or EPDM, silicone
|
|
Pressure
|
Working pressure
|
0~6bar
|
|
Temperature
|
Working temperature
|
-10~+150°C
|
|
Sterilization temperature
|
150°C≤30min
|
|
|
Connection
|
UNION,Flange
|
|
|
Exchanger type
|
Heating or Cooling
|
|
|
One Plate exchanger area
|
0.02m2,0.04m2,0.06m2,0.08m2,0.15m2,0.24m2,0.65m2,0.85m2,1.54m2,1.8m2
|
|
|
Plate thickness
|
0.7-1.0mm
|
|
|
Flow
|
0-1000T
|
|
|
Specification
|
1 square meter -60 square meter
|
|
FAQ
Q: What about the delivery time?
A: 5-10 working days for a single machine, 30-40 working days for bulk orders, and door-to-door service is also available.
Q: What about the warranty?
A: We provide 1 year free warranty and lifetime maintenance
Q: How is the installation?
A: We provide relevant materials for installation, commissioning and training.
