Product Details:
|
| Machinery Test Report:: | Provided | Maximum Working Pressure: | 2.5 MPa |
|---|---|---|---|
| Liquid Flow Rate: | 2000L/H | Voltage: | According To Type |
| Working Temperature Range: | 10℃-150℃ | Product Features: | Energy Saving Long Service Life |
| High Light: | 2000L/H Plate Heat Exchanger,2.5 MPa Plate Heat Exchanger |
||
Description
The plate heat exchanger is composed of stamped and formed concave and convex stainless steel plates. The concave-convex pattern between the two adjacent plates forms a 180-degree relative combination, so the concave-convex ridge lines between the two plates of the plate heat exchanger form staggered contact points. After the contact points are combined by vacuum welding, it forms The high-pressure staggered flow structure of the plate heat exchanger, these staggered flow structures make the cold and hot fluids in the plate heat exchanger generate strong turbulence to achieve high heat exchange effect. The plate heat exchanger is composed of a group of corrugated metal plates with four corner holes for the passage of two liquids for heat transfer.
Parameter
|
Model Num
|

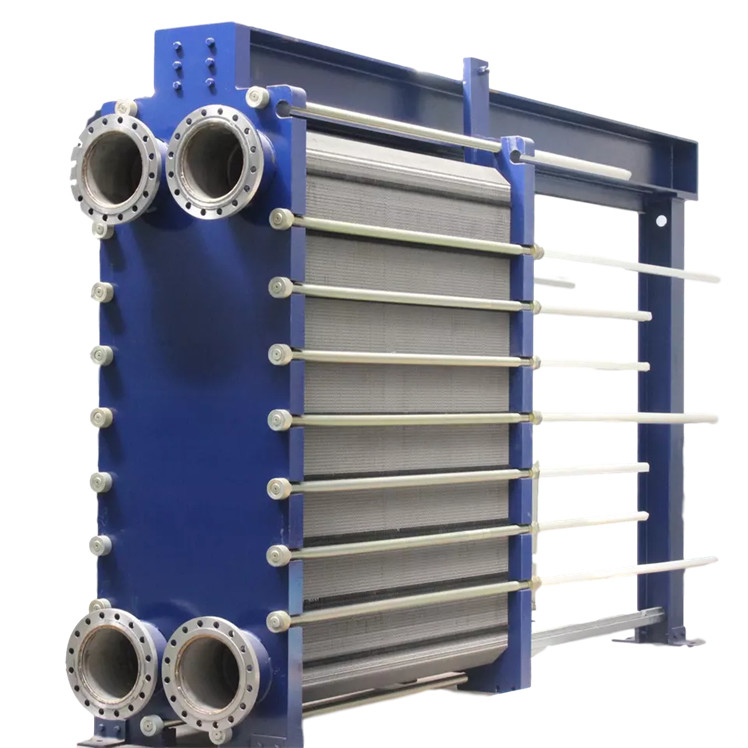

High The metal sheet is installed in a frame with a fixed plate and a movable pressing plate on the side, and is clamped with clamping bolts. The plates are equipped with sealing gaskets to seal the fluid passages and guide the fluids to flow alternately into their respective flow passages to form heat exchange. The flow rate, physical properties, pressure drop and temperature difference of the fluid determine the number and size of the plates. The corrugated plate not only increases the degree of turbulence, but also forms many bearing points, which are sufficient to withstand the pressure difference between the media. The metal plate and the movable plate pressing plate are suspended on the upper guide rod and positioned by the lower guide rod, and the rod end is fixed on the support column.
FAQ
Q: What about the delivery time?
A: 5-10 working days for a single machine, 30-40 working days for bulk orders, and door-to-door service is also available.
Q: What about the warranty?
A: We provide 1 year free warranty and lifetime maintenance
Q: How is the installation?
A: We provide relevant materials for installation, commissioning and training.
