Product Details:
|
| Machinery Test Report:: | Provided | Core Components: | Plate |
|---|---|---|---|
| Maximum Working Pressure: | 0.6-.1.6MPa | Weight: | 3000 KG |
| Working Temperature Range: | ≤180 Degrees | Single Plate Size: | 495*165*0.5mm |
| High Light: | Liquid Plate Type Heat Exchanger,Plate Type Heat Exchanger 1.6MPa |
||

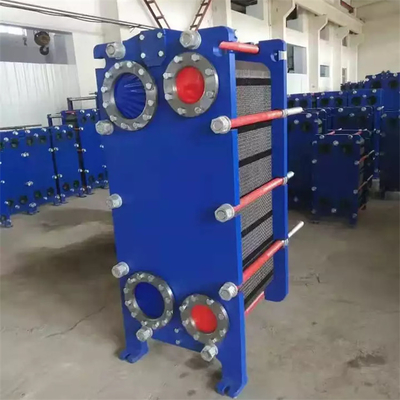

New Type High Efficiency Liquid Plate Type Heat Exchanger
Description
Plate heat exchanger is a new type of high efficiency heat exchanger which is made of a series of corrugated metal sheets. A thin rectangular channel is formed between the plates, through which the heat exchange between liquid, liquid and vapor can be achieved.
The plate heat exchanger is a new type of high efficiency heat exchanger with metal corrugated plates as heat transfer elements. Since the plate forms a special fluid passage after assembly, turbulence can be generated at a low Reynolds number, and it is not easy to scale. The plate material is made of high quality imported stainless steel plate, titanium plate and other materials, and the heat transfer coefficient is high, and the adjacent plate is corrugated. The peaks support each other to form a mesh contact, which improves the rigidity of the plate and can withstand a large pressure difference, ensuring safe and reliable use.
Parameter
|
No
|
Total Heat Exchange Area
|
Number of plates
|
L (mm)
|
D (mm)
|
A (mm)
|
Weight(kg)
|
|
1
|
0.5
|
10
|
35
|
235
|
125
|
53
|
|
2
|
0.75
|
15
|
50
|
250
|
145
|
56
|
|
3
|
1.0
|
20
|
70
|
270
|
165
|
58
|
|
4
|
1.5
|
30
|
105
|
305
|
200
|
62
|
|
5
|
2.0
|
40
|
140
|
340
|
235
|
67
|
FAQ
Q: What about the delivery time?
A: 5-10 working days for a single machine, 30-40 working days for bulk orders, and door-to-door service is also available.
Q: What about the warranty?
A: We provide 1 year free warranty and lifetime maintenance
Q: How is the installation?
A: We provide relevant materials for installation, commissioning and training.
