Product Details:
|
| Capacity: | 5~120 M3 | Working Pressure: | 1.6 Mpa |
|---|---|---|---|
| Volume: | 5000L To 200000L | Dimension(L*W*H): | 7508*2428*2600 |
| Weight: | 7410kg | Color: | Customized |
| High Light: | 10Ton Lpg Gas Storage Tank,1.6Mpa Lpg Carrier Tanks,5000L Lpg Gas Storage Tank |
||

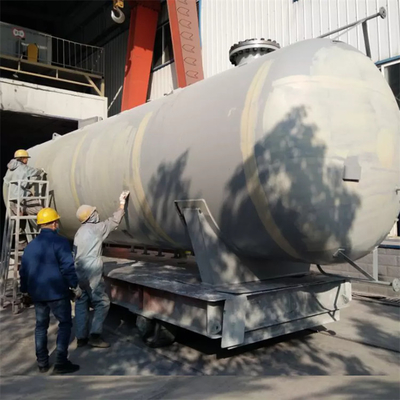

Lpg 10 Ton Storage Tank Lpg Gas Storage Tank Lpg Carrier Tanks
Product Application
Stand-alone LPG storage units with pumping equipment and dispenser incorporated in a frame.
Includes transfer equipment to allow the supply of gas in liquid
phase to vehicles, with the maximum guarantee of safety.
Simplified installation: only requires connection of power
supply to the unit and anchoring to the ground (with earth connection).
| Item | Product | Description | |||||||
| 1 | Dispenser x 1 , Or LPG filling weighter x2 | one gun, with total print function, liter Unit or Gallon Unit | |||||||
| 2 | Pump for liquid output x1 ( pump out ) | Installing Vibration-proof pipe, filter net for pump in,ball valve for input and output, pressure gauge with valve x 1. Safety valve x1 Air gas valve x2, liquid gas valve x2, metal soft pipe 3.5 m x 2 Unit ( DN50, DN 25) |
|||||||
| 3 | Pump with one Compressor | ||||||||
| 4 | Urgent cutt off valve with ball valve x 1 | ||||||||
| 5 | liquid level gauge | with valve x 2 | |||||||
| 6 | Safety valve x1 | Between tank and dispenser | |||||||
| 7 | Valve for wasted and unusefull liquid x2 | ||||||||
| 8 | Urgent cutt off valve x 2 Unit | Tank liquid gas output point, | |||||||
| 9 | Temperaturer gauge x1,pressure gauge x1 | In stalling on tank | |||||||
| 10 | Safety electric system | Safety Switch x 3 set with safety electric box. | |||||||
| 11 | Alarm system | Around pipe, to checking whether leaking gas. | |||||||
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.
LPG Storage tank for liquid gas in detail as following.
Lpg 10 ton storage tank, LPG bullet tank, LPG carrier tanks
LPG storage tank,LPG bullet tank,LPG carrier tanks
