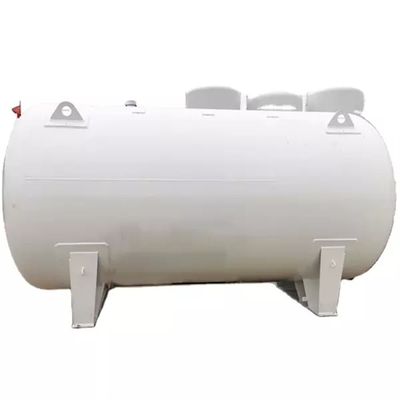

50m3 Lpg Propane Storage Tanks 50000l 25 Metric Tons 25mt 25 Ton Lpg Tank

50m3 Lpg Propane Storage Tanks Lpg Gas Storage Tank 50000l 25 Metric Tons 25mt 25 Ton Lpg Tank

The volumes of the storage tanks are mainly from 5cbm to 200cbm. The working medium includes LPG, ammonia, ether, etc. The materials could be carbon steel, aluminum, stainless steel, etc.
The basic equipment includes manhole, joint for safety valve, exit for air discharge, joint for liquid indicator, liquid inlet,gas phase equilibrium mouth, liquid phase outlet, liquid discharge, etc.The optional equipment includes liquid indicator, safety valve, temperature gauge, pressure meter, etc.For the safe usage of the LPG products, we process several test for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc

1)lpg storage tank capacity

5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l. OR

2.5tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons, 45tons, 50tons, 55tons, 60tons.

2) lpg storage tank material
Q345R Q370R Q420R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting

1. Medium: liquid oxygen tank, liquid nitrogen tank, liquid argon tank, liquid Nitrous Oxide tank, liquid carbon dioxide tank,
LNG tank.
2. Tank capacity: 2M3~350M3.
3. Tank pressure: 8bar, 16bar or based on user requirement.
4. Tank product certificate: GB, ASME, CE
5. Type: Vertical/Horizontal
6. Insulating mode: vacuum perlite powder and super vacuum multi-layer
