Product Details:
|
| Max Working: | 1.77 MPa | Core Components:: | Vaporizer |
|---|---|---|---|
| Warranty:: | 1 Year | Color:: | Customer's Request |
| Type:: | Horizontal | Volume: | 200000L |
| High Light: | Propane LPG Gas Storage Tank,1.77 MPa Propane Storage Tanks,1.77 MPa LPG Gas Storage Tank |
||

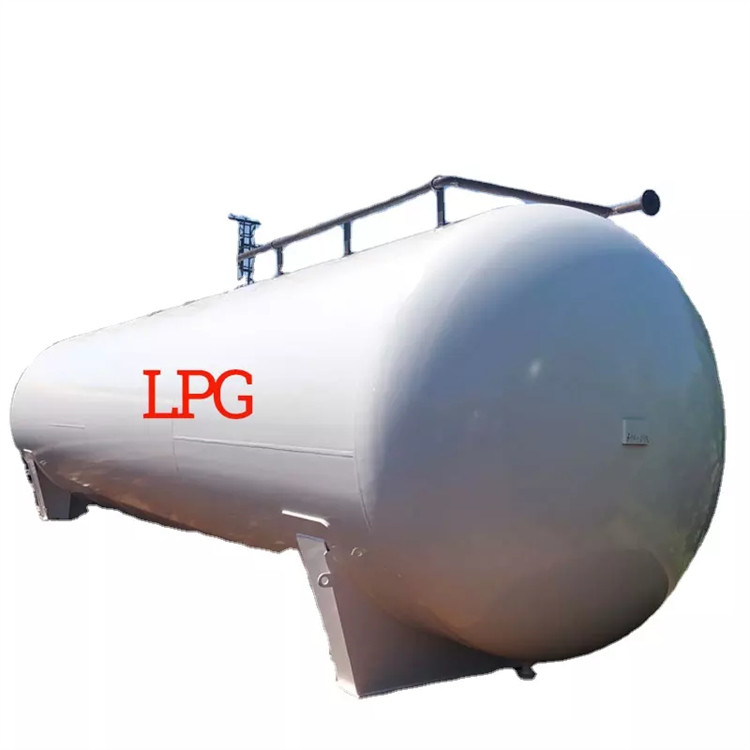

Hot Selling LPG Gas Storage Tank Propane Storage Tanks
Stand-alone LPG storage units with pumping equipment and dispenser incorporated in a frame.Includes transfer equipment to allow the supply of gas in liquid phase to vehicles with the maximum guarantee of safety.Simplified installation: only requires connection of power supply to the unit and anchoring to the ground (with earth connection).
| No. | Model | Inner/outer tank size(mm) | Material | N.W.(kg) | Total length(mm) | Foundation bolt specifications(mm) | Center distance of liquid level gauge(mm) |
| 1 | BG 1.77-1200-5 | DN1200×3980 ×8/8(6.8) |
Q345R | 1595 | 4663 | 4×M20/3200/720 | 1400 |
| 2 | BG 1.77-1400-5 | DN1400×2740 ×10/10(8.7) |
Q345R | 1780 | 3535 | 4×M20/1950/840 | 1600 |
| 3 | BG 1.77-1400-10 | DN1400×5980 ×10/10(8.7) |
Q345R | 2925 | 6775 | 4×M20/5180/840 | 1600 |
| 4 | BG 1.77-1600-10 | DN1600×4400 ×10/10(8.8) |
Q345R | 2760 | 5295 | 4×M24/3400/960 | 1800 |
| 5 | BG 1.77-1800-15 | DN1800×5250 ×12/12(10.7) |
Q345R | 4230 | 6247 | 4×M24/4300/1120 | 2000 |
| 6 | BG 1.77-2000-20 | DN2000×5650 ×12/12(10.7) |
Q345R | 5025 | 6747 | 4×M24/4730/1260 | 2200 |
| 7 | BG 1.77-2000-25 | DN2000×7250 ×12/12(10.7) |
Q345R | 5980 | 8347 | 4×M24/6330/1260 | 2200 |
| 8 | BG1.77-2200-25 | DN2200×5770 ×12/14(12.7) |
Q345R | 5910 | 6999 | 4×M30/4600/1380 | 2400 |
| 9 | WG 1.77-2000-30 |
DN2000×8840 ×12/12(10.7) |
Q345R | 6935 | 9937 | 4×M24/7900/1260 | 2200 |
| 10 | WG1.77-2200-30 |
DN2200×7080 ×12/14(12N47) |
Q345R | 6760 | 8314 | 4×M30/5900/1380 | 2400 |
Technical Advantage
Compared to conventional manual welding, mechanical automatic welding is a method in which an electric arcis burned under the flux layer for welding. Mechanical automatic welding is one of the most efficient mechanizedwelding methods available today. stable welding quality, high welding productivity, there is no arc and smokedust and so on, so that our products are neat, smooth and beautiful, also extend the service life.
