Product Details:
|
| Max Working: | 2.16 MPa | Core Components:: | PLC |
|---|---|---|---|
| Weight: | 2000 | Color: | Customized |
| Warranty Of Core: | 1 Year | Video Outgoing: | Provided |
| Dimension(L*W*H):: | Customized | ||
| High Light: | PLC Lpg Pressure Vessel,2.16 MPa Lpg Pressure Vessel,PLC LPG Gas Storage Tank |
||

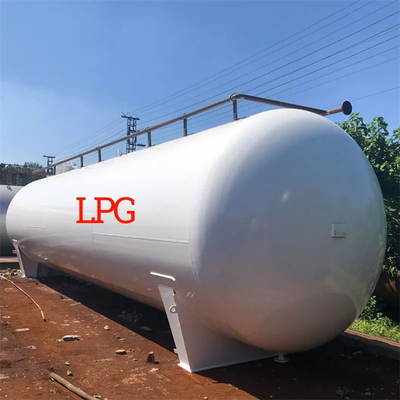

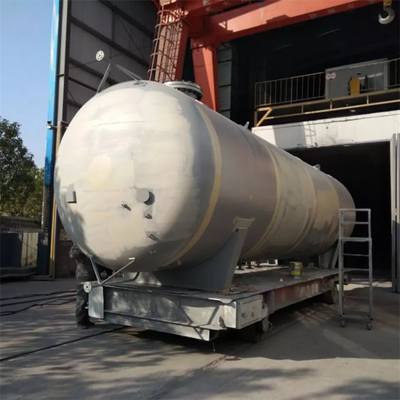

Hot Sale Lpg Pressure Vessel LPG Gas Storage Tank Price
Cryogenic vacuum storage tank, the structure is a double-layer container composed of inner and outer containers. It is a vacuum powder insulation type, which can be separated into two types, vertical and horizontal. The inner container material can be 06Cr19Ni10, and the outer container material can be 16MnR according to the user area. , The inner and outer containers are filled with pearlescent sand as the insulation material and evacuated.
Specifications
| Model(CFL/W) | IV5 | IV10 | IV15 | IV20 | IV30 | IV50 | IV60 | IV100 | IV150 | IV200 | IV250 |
| Inner tank/outer tank material | S30408/Q345R(CO2inner tank:16MnR) | ||||||||||
| Operation pressure | 0.2/0.8/1.2/1.6/2.8 MPa | ||||||||||
| Volume (m3) | 5 | 10 | 15 | 20 | 30 | 50 | 60 | 100 | 150 | 200 | 250 |
| Inner tank size (m) | 1.4 | 1.8 | 1.8 | 2.0 | 2.2 | 2.5 | 2.7 | 3.0 | 3.3 | 3.5 | 3.6 |
| Outer tank size (m) | 1.9 | 2.3 | 2.3 | 2.5 | 2.7 | 3.0 | 3.2 | 3.5 | 3.8 | 4.0 | 4.1 |
| Daily evaporation | 0.4 | 0.36 | 0.35 | 0.33 | 0.29 | 0.23 | 0.21 | 0.16 | 0.14 | 0.13 | 0.12 |
FAQ
1. How can you guarantee your tanks quality?
For LPG Gas Storage Tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
2. Do your tanks include the cryogenic pump and vaporizer?
We can also provide cryogenic pump or vaporizer if clients requires.
