Product Details:
|
| Core Components:: | Pump | Capacity: | 4000L |
|---|---|---|---|
| Dimension(L*W*H): | 10658*2374*3080 | Color: | Customized |
| Weight:: | 9106KG | Warranty:: | More Than 5 Years |
| Highlight: | High Pressure LPG Gas Storage Tank,4000L LPG Gas Storage Tank,Carbon Steel Q345R LPG Storage Tank |
||

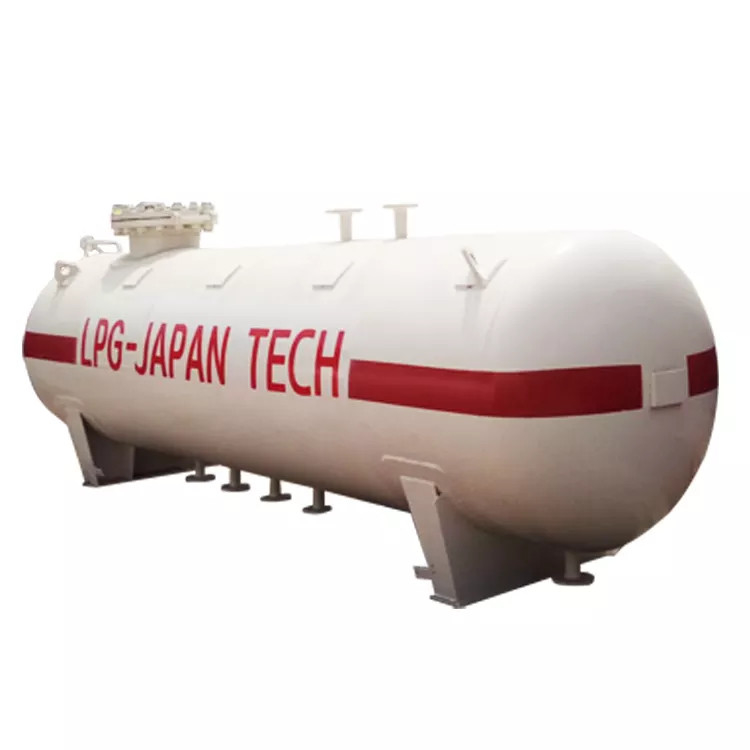

High pressure LPG Gas Storage Tank for sale
High pressure LPG Gas Storage Tank The horizontal storage tank is a special equipment for storing liquefied petroleum gas (LPG) with saturated vapor pressure lower than 1.77 Mpa at 50℃ and the safety storage capacity of 2T-100T. The tank is designed in accordance with the requirements of Safety Technology Supervision Regulations for Pressure Vessel and Steel Pressure Vessel
Specifications
| LPG TANK DIMENSIONS | |||
| Volume of Tank | 3 - 200 CBM | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
![]()
![]()
FAQ
1. who are we?
We are based in HeNan, China. There are total about 70-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Micro Bulk Tanks,PSA Nitrogen Generator,LPG Gas Storage Tank,Fuel Oil Storage Tank.
Contact Person: Mrs. Kelly
Tel: +86 15824687445
