Product Details:
|
| Dimensions: | Customizable | Material: | Stainless Steel |
|---|---|---|---|
| Test Pressure: | 0.8MPa-1.6MPa | Inner Cylinder Material: | Q345R |
| Geometric Volume: | 31.58m3 | Type: | Vertical/horizontal |
| Item: | Cryogenic Pressure Tank (LO2,LN2,LAr) | Weight: | 7500kgs-350000kgs |
| Interlayer Material: | Expander Perlite | Capacity: | 5000 Liters |
| Highlight: | Corrosion Resistant Lpg Storage Tank,Multifunctional Lpg Storage Tank,Stainless Steel Lpg Storage Tank |
||

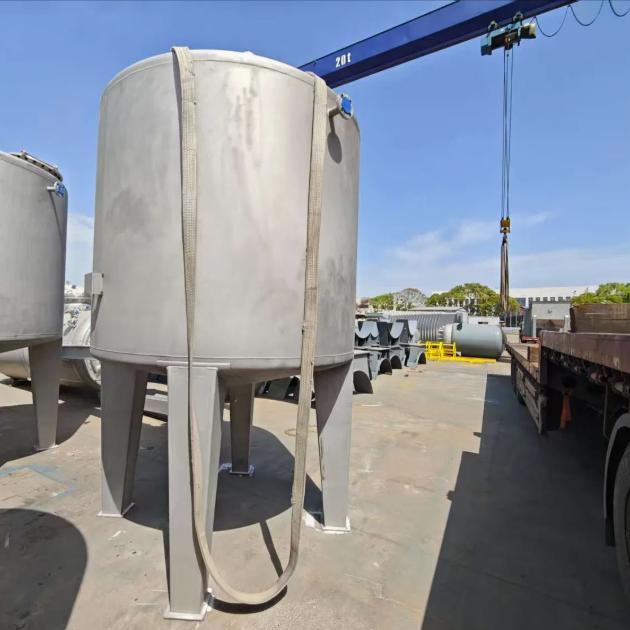

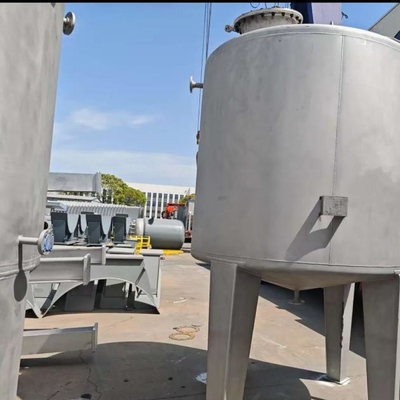

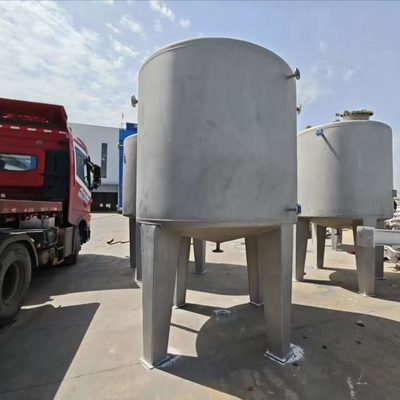

5m³ 316L LPG storage tanks Stainless Steel Multifunctional Corrosion-Resistant Pressure Storage Tank
Description
The main function of an LPG storage tank is to safely store liquefied petroleum gas.
LPG storage tanks can effectively liquefy gas, reduce its volume, and facilitate transportation and storage.
When liquefied petroleum gas is in use, it can quickly convert into a gaseous state through evaporation to meet users' needs.
LPG storage tanks are also equipped with safety devices to prevent leakage, overpressure and excessive temperature. These devices can automatically activate in case of abnormal situations to ensure safe use.
5m³ 316L LPG storage tanks parameter
|
Parameter |
Specification |
|
Product Name |
5m³ 316L Stainless Steel Multi-Purpose Storage Tank |
|
Design Pressure |
Atmospheric Pressure |
|
Pressure Test Method |
Hydrostatic Test (Water Leakage Detection) |
|
Design Temperature |
Ambient Temperature (0-50°C) |
|
Empty Weight |
847.4 kg |
|
Material of Construction |
• Shell/Head:316L • ASTM A240 Standard Compliance |
|
Total Volume |
5.2 m³ (Nominal Capacity: 5.0 m³) |
|
Operating Media |
Water, Essential Oils, Low-concentration Organic Acids (pH ≥3) |
|
Surface Finish |
180-grit mechanical polish (Ra ≤1.6 μm) |
LPG storage tanks are usually made of steel or composite materials, featuring excellent sealing performance and pressure resistance. Their basic structure includes a tank body, valves, supports, and safety devices, etc.
The tank body is the main part for storing liquefied petroleum gas. It is generally designed in a cylindrical shape to evenly withstand internal and external pressures, which is a key structural design to ensure stable pressure bearing during storage.
Valves function to control the inflow and outflow of gas as well as safe deflation. They play a critical role in regulating the normal operation of the tank and responding to emergency situations—for example, they can quickly cut off gas flow or release excess pressure in case of overpressure, thus ensuring safety in both daily use and emergencies.
Supports are used to hold the storage tank, fixing it firmly on the ground to prevent tilting or sliding. This structural component is essential to maintain the overall stability of the tank, especially in environments with potential external disturbances (such as slight vibrations or uneven ground), ensuring that the tank remains in a safe and stable state during long-term use.
Product Usage
LPG storage tanks have become widely used fuel storage equipment due to their characteristics of ease of use, convenient operation, and safe storage.
Their applications in the industrial field include boilers, water heaters, power stations, mechanical processing, chemical industry, etc.
In the household field, LPG storage tanks are used for fuel storage in ovens, water heaters, stoves, cookers, and the like.
About our company
GNEE has a professional and passionate team. The management team has rich experience and accurately grasps the industry direction; the production department currently has 150 employees, including 2 senior engineers, 17 engineers and 10 assistant engineers; the sales team provides attentive services to meet customer needs. All teams work together to promote the steady development of the company.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a well-established manufacturer with over three decades of industry expertise, proudly based in China.
Q: What's the information needed if I send one inquiry?
A: Kindly provide comprehensive details such as working conditions, types of mediums, temperature, pressure, equipment material, dimensions, quantities, and any additional special requests. This will enable us to tailor our services to your specific needs.
Q: How does your factory do quality control?
A: Quality reigns supreme at our facility. We conduct thorough and rigorous testing procedures before dispatching any product, ensuring top-notch quality and reliability.
