40tons Lpg Gas Storage Tank For Setting Up Lpg Station

I'm Online Chat Now

40tons Lpg Gas Storage Tank For Setting Up Lpg Station

40tons Lpg Gas Storage Tank For Setting Up Lpg Station
40tons Lpg Gas Storage Tank For Setting Up Lpg Station 40tons Lpg Gas Storage Tank For Setting Up Lpg Station 40tons Lpg Gas Storage Tank For Setting Up Lpg Station 40tons Lpg Gas Storage Tank For Setting Up Lpg Station

Large Image :  40tons Lpg Gas Storage Tank For Setting Up Lpg Station

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden box packaging or outer shell packaging
Payment Terms: L/C,T/T
Supply Ability: Depends on the specific product

40tons Lpg Gas Storage Tank For Setting Up Lpg Station

Description
Operating Temperature: -196°C To 50°C Type: Horizontal/vertical
Oxygen Tank: 15000Liters Liquid Oxygen Tank Warranty: 1 Year
Size: Customizable Working Pressure: 0.8MPa, 1.2MPa, 1.6MPa Or Customized
Structure: Horizontal Or Vertical Type Vessels Capacity: 1000 Liters
Medium: LNG Other Name: Cryogenic Liquid Co2 Gas Storage Tank

40tons Lpg Gas Storage Tank For Setting Up Lpg Station

Product Description

Our LPG tanks are designed for medium-to-large-scale storage of liquefied petroleum gas, featuring robust steel construction and advanced welding technology. Compliant with international safety standards, ideal for gas stations, chemical plants, and centralized gas supply systems.


Product Parameters

SPECIFICATION

DESIGN
PRESSURE
Mpa
WALL THICKNESS


WEIGHT
kg
NOMINAL VOLUME
VN,m3
NOMINAL DIAMETER
DN,mm
CYLINDER LENGTH
L1,mm
HORIZONTAL TANK LENGTH
~L0 ,mm

CYLINDERmm

HEAD
mm
5
1200
4000
4900
1.77
8
10
1950
10
1600
4400
5500
1.77
10
12
3200
20
2000
5700
7000
1.77
12
14
5400
30
2200
7100
8500
1.77
14
14
7650
40
2400
8000
9500
1.77
14
16
9400
50
2600
8400
10000
1.77
14
16
10700
80
2800
12000
13700
1.77
16
18
17500
100
3000
13000
14800
1.77
18
22
22800
  • When the design pressure is 1.77 MPa, it is suitable for: liquid propane or liquefied petroleum gas with a saturated vapor
    pressure at 50°C of less than or equal to 1.62 MPa.
  • The above parameters refer to NB/T47001-2009 “Steel Liquefied Petroleum Gas Horizontal Storage Tanks: Types and Basic Parameters.”
  • The material used in the above table is Q345R, with a thickness calculated based on a corrosion allowance of 1 mm; if the environment contains wet H₂S, the corrosion allowance should be no less than 3 mm, and the material, thickness, and weight should be adjusted as needed, with corresponding treatment applied.

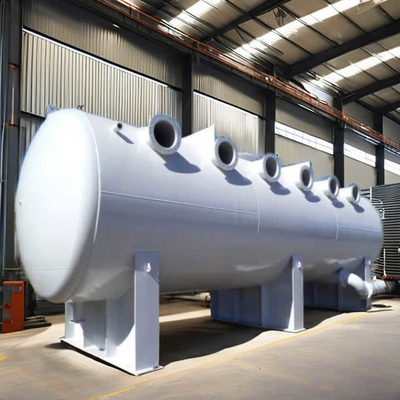

40tons Lpg Gas Storage Tank For Setting Up Lpg Station 0

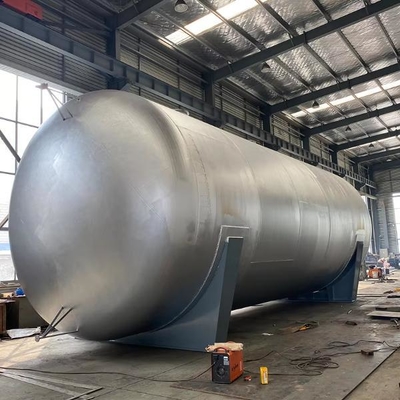

40tons Lpg Gas Storage Tank For Setting Up Lpg Station 1

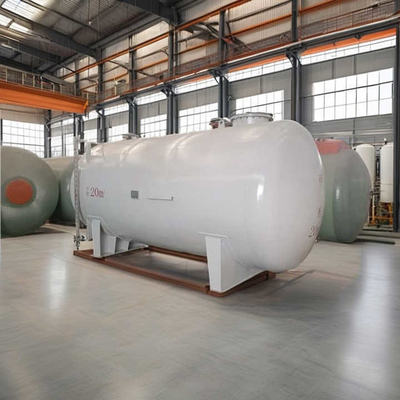

40tons Lpg Gas Storage Tank For Setting Up Lpg Station 2

Manufacturing Workshop

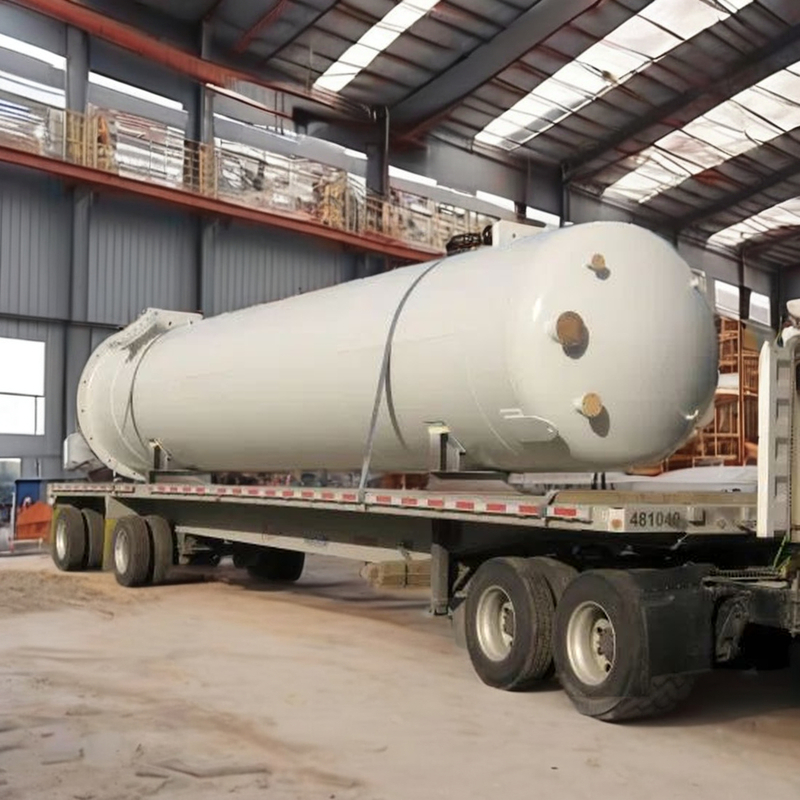

40tons Lpg Gas Storage Tank For Setting Up Lpg Station 3


Product Application
Our cryogenic liquid tank of LNG, oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide and a full range of other vertical and horizontal, vacuum powder insulation high vacuum multi-layer winding insulation methods
It is widely used in the gas industry, hospitals, metal smelting, filling stations and liquefaction plants, and other large gas users. Our goal is to achieve the best central supply products


ABOUT US

Our company is a professional manufactory of large storage tanks, it contains the design, provided steel material and overseas installation. Professional engineers and construction teams, all the tanks are made in accordance with international standards.

The large storage tanks of various specifications and models can be made. We can choose different types and different materials storage tanks according to the properties of the materials.

If you want to know about certain products, you can send an email to info@gneeheatex.com.
