Product Details:
|
| Dimension(L*W*H): | Customized | Warranty: | More Than 5 Years |
|---|---|---|---|
| Outer Material: | Q345R | Advantage: | Long Life/duable |
| Keywords: | Lng Storage Tank For Sale Sizes | Name: | Lng Storage Tank |
| Capacity: | 5000l-200000L | Weight: | Customized |
| Shape: | Cylindrical | ||
| High Light: | 5000L LNG Gas Tank,200000L LNG Gas Tank,Q345R Liquid Natural Gas Tank |
||

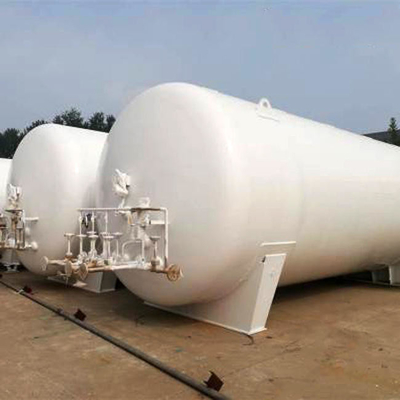

5000L-200000L Cryogenic Lng Storage Tank
Description
LNG cryogenic storage tanks are usually used in LNG vehicle filling stations, which can provide alternative LNG fuel for large vehicles. The LNG cryogenic storage tank is composed of a discharge part, a pressurization part, a liquid storage tank part and an accessory part, which can conveniently store and transport liquid LNG gas.
Parameter
| Volume of Interlayer | 9.36m³ |
| Inside Diameter of Inner Vessel | 1900mm |
| Inside Diameter of Outer Shell | 2404mm |
| Height(Length) of Inner Vessel | 4254mm |
| Height(Length) of Outer Shell | 4900mm |
| Material for Inner Vessel | S30408 |
| Material for Outer Shell | Q345R |
| Thickness of Inner Vessel | 6 mm for shell; 8 mm for head |
| Thickness of Outer Shell | 6 mm for shell; 8 mm for head |
| Boundary Dimension | 5500x2416x2770mm |
| Weight of Tank | 6300 kg |
| Payload | 4260kg |
| Design Pressure of Inner Vessel | 1.36MPa |
| Design Pressure of Outer Shell | -0.1 MPa |
| Design Temperature of Inner Vessel | -196 ℃ |
| Design Temperature of Outer Shell | 50 ℃ |
| Medium | LNG |
Features
The filling device of the cryogenic LNG storage tank is an immersed cryogenic liquid pump. The cryogenic pump can achieve long continuous operation and zero leakage. It can directly pressurize the liquid LNG to the tanker and the vehicle-mounted cryogenic bottle for large-scale LNG vehicles. Provides stable and efficient energy.
Advantage
Vacuum cryogenic LNG storage tanks are advanced equipment commonly used for long-term storage of cryogenic liquids. The storage tank has the advantages of compact structure, small footprint, large reserves, adjustable pressure, low evaporation rate, safety and reliability. Storage tanks can be widely used for the storage of liquid gases such as liquid oxygen and liquefied natural gas (LNG). The LNG cryogenic storage tank adopts a double-layer shell structure, interlayer insulation material and vacuum, and is mainly composed of inner shell, insulation structure, piping system and safety accessories.
