Product Details:
|
| Machinery Test Report:: | Provided | Core Components:: | PLC, Engine |
|---|---|---|---|
| Weight: | 23403 | Key Selling Points:: | Competitive Price |
| Keywords:: | Double Walled Gasl Storage Tanks | Product Name:: | Storage Tank |
| Medium: | LNG/O2/N2/Ar2/CO2 | Item: | Liquid Cryogenic Storage Tank |
| High Light: | CO2 LNG Cryogenic Tank,Vacuum LNG Cryogenic Tank,double wall cryo storage tank |
||

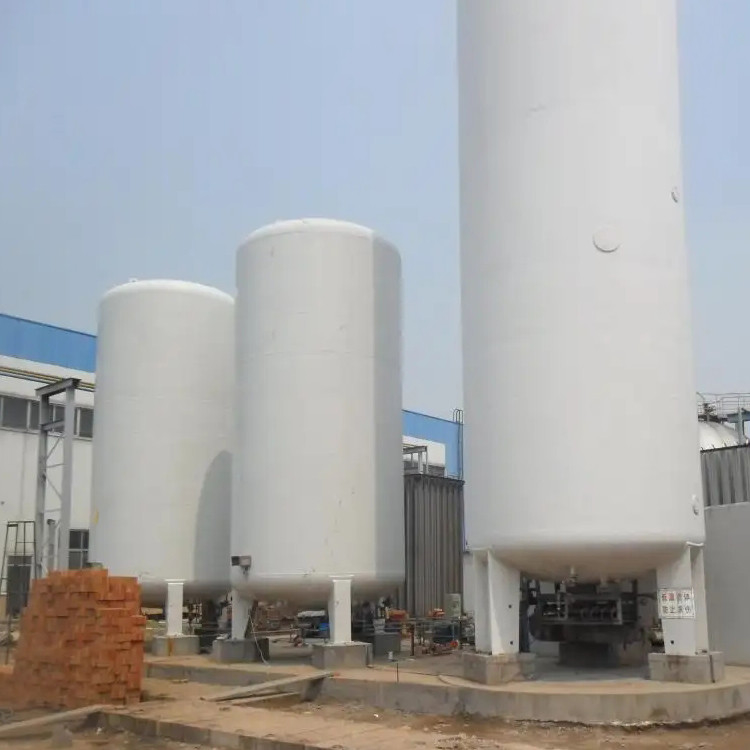

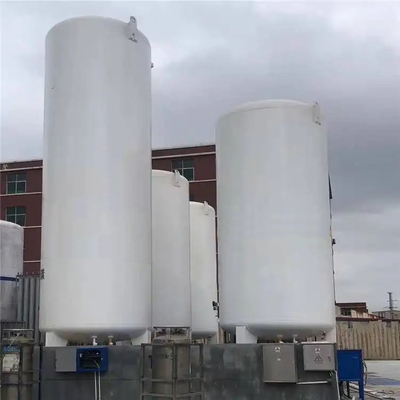

Double Wall Vacuum Cryogenic Liquid Co2 Storage Pressure Tank For Filling Station
Description
cryogenic liquid co2 storage tank is for double wall, the inner material adopted 16MnDR,the outer material useing Q245R,carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.
Specifications
|
The effective volume (m3) |
Maximum working pressure (MPa) |
Empty container (kg) |
Outline dimension (Diameter * height) |
5 |
0.2 | 3623 | 1916x5260 |
| 0.8 | 3825 | ||
| 1.6 | 5118 | ||
10 |
0.2 | 5790 | 2316x5970 |
| 0.8 | 6235 | ||
| 1.6 | 10710 | ||
| 2.0 | 13200 | ||
| 30 | 0.2 | 13527 | 2720x10230 |
| 0.8 | 15100 | ||
| 1.6 | 18110 | ||
| 50 | 0.2 | 18650 | 3020x12670 |
| 0.8 | 21565 | ||
| 1.6 | 26740 | ||
| 100 | 0.2 | 36570 | 3524x17040 |
| 0.8 | 44595 | ||
| 1.6 | 53550 | ||
| 200 | 0.2 | 76838 | 4724x19192 |
| 0.8 | 92143 | ||
| 1.6 | 108440 | ||
| Remarks:1 materials used: Q345R/304 stainless steel 2 use: industrial, medical, civil natural gas, oxygen, argon, carbon dioxide, nitrogen gas units centralized gas supply |
|||
product structure
The low-temperature carbon dioxide storage tank is insulated in the form of vacuum powder (the thermal insulation effect is better than foaming and cold preservation, and the service life is longer, but the cost is higher). The vertical outrigger structure usually adopts the sling structure or the combination of the lower head pillar and the pull strap; the horizontal saddle structure usually adopts the bakelite support structure, or the holding belt structure.
Company Profile
The company has technical R&D personnel and sales and operation personnel. The service life of the low-temperature storage tanks produced is about 20 years. It has several production lines to meet the product needs of customers.
