Product Details:
|
| Outer Cylinder Material:: | Q245R | Other Name:: | Cryogenic Liquid Co2 Gas Storage Tank |
|---|---|---|---|
| Volume:: | 30m3 | After-sales Service Provided:: | Overseas Third-party Support Available |
| Working Pressure:: | 2.16Mpa | Inner Cylinder Material:: | S30408 |
| Adiabatic Mode:: | Vacuum Powder Insulation | Filling Rate:: | 95% |
| High Light: | 30m3 Cryogenic Storage Tank,21.6 bar Cryogenic Storage Tank,CO2 cryogenic ISO tank |
||

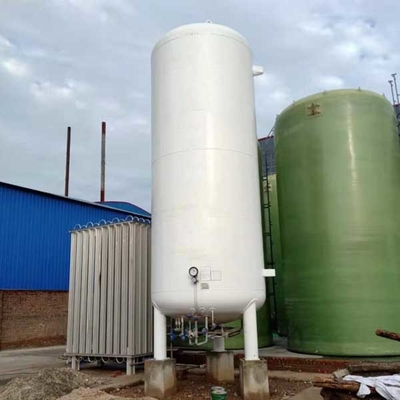

30m3 21.6bar Vertical Type Large Cryogenic Liquid Co2 Gas Storage Tank For Beverage Factory
Description
Cryogenic carbon dioxide storage tank equipment is widely used in various industries such as industry, agriculture and scientific research. The application of cryogenic liquid storage tank equipment is increasingly widespread, mainly because it has the advantages of convenient transportation, energy saving, It has the advantages of safety and reliability, guaranteed purity and great adaptability.
Parameter
| Model | Effective volume(M3) | Working pressure(Bar) | Dimension(mm) | Weight(Kg) |
| 5/2.16 | 5 | 21.6 | 2000*5130 | 4450 |
| 10/2.16 | 10 | 21.6 | 2100*7170 | 6986 |
| 15/2.16 | 15 | 21.6 | 2500*6912 | 8810 |
| 20/2.16 | 20 | 21.6 | 2500*8756 | 11328 |
| 25/2.16 | 25 | 21.6 | 2900*7728 | 14660 |
| 30/2.16 | 30 | 21.6 | 2900*8875 | 17961 |
| 50/2.16 | 50 | 21.6 | 3200*11320 | 26097 |
| 60/21.6 | 60 | 21.6 | 3200*13180 | 30220 |
| 100/2.16 | 100 | 21.6 | 3500*16870 | 49627 |
Feature
The cryogenic liquid carbon dioxide storage tank adopts the "combined safety system valve", which uses two sets of safety valves to work at the same time. When the safety valve is regularly calibrated, one side can be closed, and the other side can continue to work to ensure the safe operation of the storage tank. The upper part of the inner container of the storage tank The pressure gauge, differential pressure liquid level gauge and liquid level comparison table are set up, so that the storage capacity and pressure change of the inner container can be grasped at any time, which is convenient for the operation during filling and discharging. The lower part of the storage tank is equipped with a special storage tank vacuum detection, vacuum gauge and vacuum valve, which can be used to detect the vacuum degree of the interlayer regularly or at any time with a vacuum gauge to ensure the safe operation of the storage tank.
