Product Details:
|
| Working Pressure: | Less Than Or Equal To 1.63 MPa | Port: | China |
|---|---|---|---|
| Working Temperature: | -196 - 50 ℃ | Outer Cylinder Material: | Q345R |
| Model: | ZCF-100000/8 | Fluid: | LNG |
| Machinery Test Report: | Provided | Feature: | High Efficiency |
| Effective Volume: | 5-200m3 | Material: | Stainless Steel |
| Medium: | LO2,LN2,LAr | Height: | 1800-2450mm |

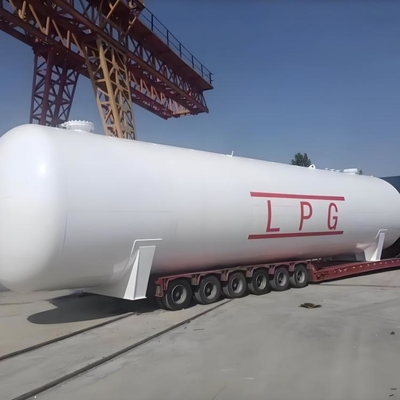

Liquefied Petroleum Gas (LPG) storage tanks are pressure vessels used to store media with liquefied petroleum gas (propane) as the main component.
The saturated vapor pressure of the stored medium at 50°C is less than or equal to 1.63 MPa, and the solubility of H₂S is less than 7.7 mg/L.
They are divided into two types: above-ground storage tanks and underground storage tanks.
Functions of Liquefied Petroleum Gas (LPG) Storage Tanks
(1) Receive LPG from supply units.
(2) Unload LPG into storage tanks.
(3) Store LPG in storage tanks.
(4) Provide sufficient LPG for filling LPG cylinders and automotive tankers.
(5) Perform LPG tank transfer operations according to production needs.
(6) Recover residual liquid from empty LPG cylinders.
(7) Maintain and overhaul equipment, pipelines, valves, and instruments in the tank farm.
|
|
Ontwerpdruk (mpa) |
(dia * lengte * dikte) mm |
Afmetingen (dia/hoogte/lengte) mm |
Materiaal |
Totaal netgewicht (kg) |
|
5 |
1.77mpa |
Dn1200*4000*10 |
1800*1800*6000 |
Q345r |
3200kg |
|
10 |
1.77mpa |
Dn1200*4400*10 |
2000*2000*6000 |
Q345r |
3500kg |
|
15 |
1.77mpa |
Dn1600*5250*12 |
2300*2000*7000 |
Q345r |
5200kg |
|
20 |
1.77mpa |
Dn1800*5800*12 |
2500*2000*1000 |
Q345r |
3800kg |
|
25 |
1.77mpa |
Dn2200*7100*12 |
2600*2200*1200 |
Q345r |
7000kg |
|
30 |
1.77mpa |
Dn2000*5200*12 |
2450*2000*7500 |
Q345r |
750pp |
◆ Prevention of Fire and Explosion Accidents
v Regularly inspect the condition of equipment and facilities, and promptly identify and repair aged or damaged components to prevent liquefied petroleum gas leakage.
v Ensure that the installation height of safety devices such as relief valves complies with specifications to protect the safety of operators. Equipment must be inspected regularly to confirm that relief valves are installed properly, and explosion-proof tools should be used to reduce the risk of fire and explosion.
◆ Response to Poisoning and Suffocation Risks
v When working in environments with toxic and harmful substances, ensure good ventilation and take necessary protective measures such as wearing gas masks.
v Regularly maintain and inspect equipment and facilities to keep them in good condition, thereby reducing the risk of poisoning and suffocation. Ensure that equipment is in good working order and the working environment is well-ventilated, and that the height of safety valve relief pipes meets relevant specifications.
◆ Other Safety Measures
v Equip the storage tank with a water spray cooling system and ensure an adequate water supply.
v Conduct regular inspections on safety accessories such as pressure gauges, safety valves, and combustible gas alarms to ensure they are in effective working condition.
v Register pressure vessels and carry out regular inspections in accordance with regulations to ensure that pressure vessels are used safely within their valid period.
Q: Can your products be customized?
A: Considering the different sizes, materials, and heat exchange areas required for heat exchangers in different industries, our products can be customized according to your needs.
Q: What is the price of shipping?
A: The price will vary depending on the delivery port.
Q: What do I need to provide for custom heat exchangers?
A: Technical drawings and specification documents are best, or you can list the key parameters of the design.
Q: Can I have your catalog and price list?
A: Prices may vary depending on materials, standards, and designs. Welcome to contact us for accurate prices.
