Product Details:
|
Outer Diameter: | Customized | Oxygen Tank: | 15000Liters Liquid Oxygen Tank |
---|---|---|---|
Key Selling Points: | Long Service Life | Insulation: | Vacuum Powder |
Insulation Methoned: | Vaccum Powder | Warranty: | 1 Year |
Working Temperature: | -196 - 50 ℃ | Geometric Volume: | Customized |
Weight: | Depends On The Product | Operating Pressure: | 1.6MPa |
Insulation Mode: | Vacuum Powder | Inner Cylinder Material: | Q345R |
Medium: | Oxygen,nitrogen,argon | Filling Rate: | 95% |
Liquefied Petroleum Gas (LPG) storage tanks are mainly used for storing LPG, an energy source widely utilized in household, industrial, and commercial applications. Characteristics of storage tanks of various models:

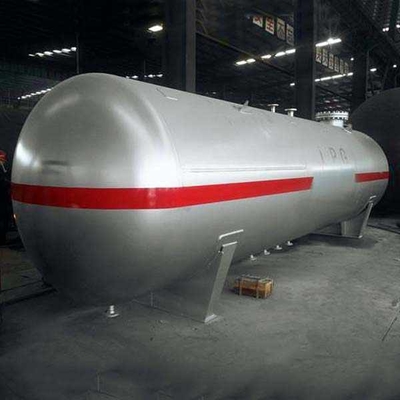

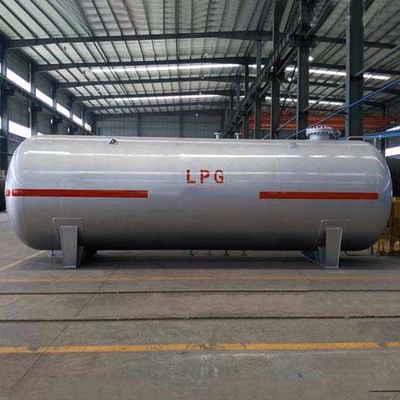

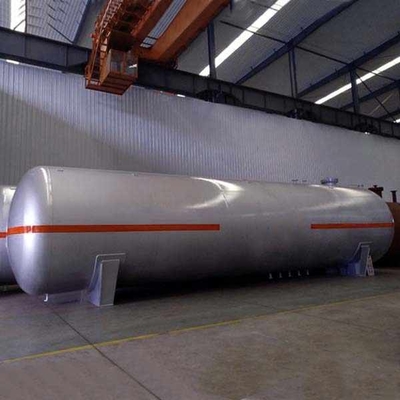

(1) Horizontal Storage Tanks
Horizontal storage tanks are generally used for large-capacity storage and are suitable for large industrial users.
Their advantages lie in a small floor area and ease of installation and maintenance.
Thanks to their stable structure, they can withstand relatively high internal pressure, making them suitable for long-term storage of LPG.
(2) Vertical Storage Tanks
Vertical storage tanks are usually used for small and medium-sized users, featuring a small footprint and flexible capacity.
They can be selected with different heights and diameters according to needs, making them suitable for limited spaces in cities.
NO. |
model |
design pressure |
Cylinder size (diameter * tube length * wall thickness mm) |
Dimensions (outside diameter * total height / total length mm) |
Material |
Total net weight(kg) |
1 |
10m/10000L |
1.77MPa |
1600*4400*10 |
1620*2400*5300 |
Q345R |
2800 |
2 |
15m/15000L |
1.77MPa |
1800*5250*12 |
1824*2600*6300 |
Q345R |
4250 |
3 |
25m/25000L |
1.77MPa |
2200*5800*12 |
2224*3000*7100 |
Q345R |
5850 |
4 |
30m/30000L |
1.77MPa |
2200*7100*12 |
2224*3000*8400 |
Q345R |
6800 |
5 |
45m/45000L |
1.77MPa |
2600*7500*14 |
2628*3400*9000 |
Q345R |
9770 |
6 |
50m/50000L |
1.77MPa |
2600*8500*14 |
2628*3400*10000 |
Q345R |
10800 |
Safety is a top priority in the design of liquefied petroleum gas (LPG) storage tanks. In the design of LPG storage tanks, GNEE usually incorporates multiple safety protection measures, including pressure relief valves, valve monitoring and alarm systems, etc.
Regular maintenance and inspection are also important steps to ensure the safety of storage tanks.
Users should regularly check the tightness of the storage tanks, the flexibility of the valves, and the integrity of the overall structure.
With the continuous advancement of technology, the design and manufacturing of LPG storage tanks are constantly innovating.
In the future, more intelligent storage tanks may emerge, equipped with monitoring systems and remote management functions to enhance safety and convenience in use.
As environmental protection regulations become increasingly stringent, more emphasis will be placed on sustainable development in the materials and design of storage tanks, promoting the green transformation of the LPG industry.
GNEE offers a wide range of LPG storage tank models, each with its own characteristics, suitable for different needs and scenarios.
By comparing different types of storage tanks, their respective advantages can be identified, helping users make more reasonable decisions when making a selection.
In future development, technological progress and environmental friendliness of LPG storage tanks will become important directions for the industry.
Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution. We have shipping agent can choosing the cheapest and fastest delivery. FOB, CIF, C&F or EXW are no problem for us.
Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
Q: What is the standard of package?
A: Export standard package or special package according to customer’s requirement.
Q: Why should I choose GNEE?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
