Product Details:
|
| Inner Material: | Stainless Steel | Design Standard: | ASME |
|---|---|---|---|
| Capacity: | 30m3 -200M3 | Working Pressure: | 1.38 MPa |
| Advantage: | Long Service Time | Volume: | 5000L |
| Outer Cylinder Material: | Q345R | Storage Tank: | Vertical Liquid Co2 Storage Tank |
| Inner Vessel Pressure: | 0.5 Bar | Working Medium: | LN2,LO2,LPG,LNG,LAr |

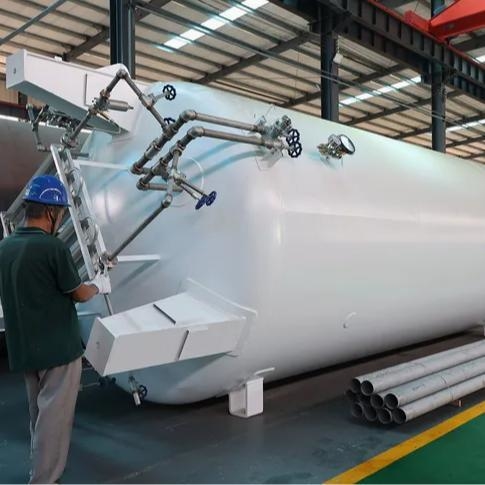

30m3 Liquid Oxygen Nitrogen Argon Storage Tank Cryogenic Vessel Tank
Description
Cryogenic storage tanks, as the name suggests, are containers used to store cryogenic liquids and are commonly used for storing liquid nitrogen, liquid oxygen, liquid argon, liquid ammonia, etc.
Basic characteristics
lStrong thermal insulation performance: Multi-layer thermal insulation materials are used to reduce heat transfer and keep the liquid in a cryogenic state.
lHigh vacuum design: A vacuum layer is formed between the tank body and the outside to further reduce heat conduction.
lLow-temperature resistant materials: The tank body is mostly made of low-temperature resistant metal materials such as stainless steel and aluminum alloy to ensure structural strength and corrosion resistance.
lHigh safety: Equipped with pressure relief devices, safety valves, etc. to prevent accidents caused by excessive pressure.
Product Specifications
|
Design Pressure(Mpa) |
0.88 |
1.68 |
1.60 |
0.80 |
0.80 |
1.76 |
|
Geometric Volume(m3) |
20 |
20 |
16 |
18 |
18 |
18 |
|
Main Material |
S30408/Q345R |
S30408/Q345R |
S30408/Q345R |
S30408/Q345R |
S30408/Q345R |
S30408/Q345R |
|
Thermal-insulating Type |
High Vacuum Multilayer Winding Insulation |
High Vacuum Multilayer Winding Insulation |
High Vacuum Multilayer Winding Insulation |
High Vacuum Multilayer Winding Insulation |
High Vacuum Multilayer Winding Insulation |
High Vacuum Multilayer Winding Insulation |
|
Tank Size |
6058X2438X2591 |
6058X2438X2591 |
6058X2438X2591 |
6058X2438X2591 |
6058X2438X2591 |
6058X2438X2591 |
|
Container Size |
Φ2412X5950 |
Φ2412X5950 |
Φ2400X5936 |
Φ2416X5708 |
Φ2416X5708 |
Φ2416X5720 |
|
Weight(KG) |
9360 |
11360 |
9950 |
10307 |
10307 |
12515 |
Maintenance and Usage Recommendations
Regular Inspection
Regularly inspect the appearance of the tank for corrosion, cracks, leaks, and other issues. Check the integrity of the thermal insulation layer and vacuum layer.
Maintain Safety Devices
Equipment such as safety valves and pressure gauges should be calibrated and maintained on time to ensure their normal operation.
Control Temperature and Pressure
Adjust operating parameters reasonably to avoid exceeding the design range of the equipment and reduce equipment wear.
Keep Clean
Keep both the interior and exterior clean to prevent impurity accumulation from affecting equipment performance.
Record Operating Data
Establish equipment maintenance and operation files, which help trace problems and optimize operations.
FAQ
Q: What is the price of shipping?
A: The price will vary depending on the delivery port.
Q: What do I need to provide for custom heat exchangers?
A: Technical drawings and specification documents are best, or you can list the key parameters of the design.
Q: Can I have your catalog and price list?
A: Prices may vary depending on materials, standards, and designs. Welcome to contact us for accurate prices.
Q: What are your payment terms?
A: T/T, L/C, or negotiation.
Q: Can I get a guarantee of products?
A: Yes, every product is quality warranted under customer correct use of the products.
Q: Is OEM/ODM available?
A1: Yes, it is! Our products can be customized. We have design and engineering teams,we can customize products according to customers' drawings or requirements.
Q: How can we contact you about cryogenic storage tanks?
A: You can click the inquiry or send us an e-mail to info@gneeheatex.com.
