Product Details:
|
| Capacity: | 5-250 Cubic Metre | Weight: | Specification |
|---|---|---|---|
| Warranty: | 1 Year | Dimension(l*w*h): | Actual Size,Customerized |
| Material: | Stainless Steel | Color: | White Or Based On Customer's Requirement |
| Medium: | LN2 Liquid Nitrogen,LAR,LIN,LN2,Liquified Ethylene And Etc | Usage: | Store,cryogenic Liquid Storage,liquid Gas Storage Tank,Cryogenic Storage Tank,cryogenic Storage Dewar |
| Application: | Pharmaceutical,Fuel Oil,Cold Storage,Chemical,juice | Working Pressure: | 0.8bar/1.6bar |
| Working Medium: | LN2,LO2,LPG,LNG,LAr | Pressure: | 10~50kPa |

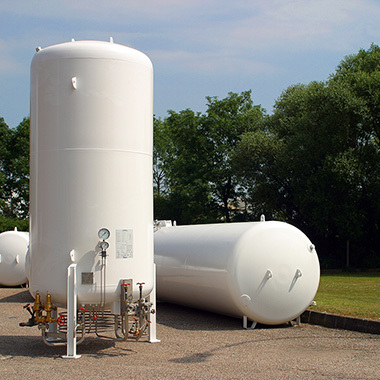

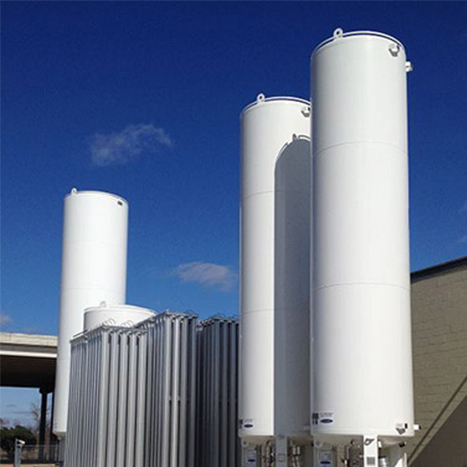

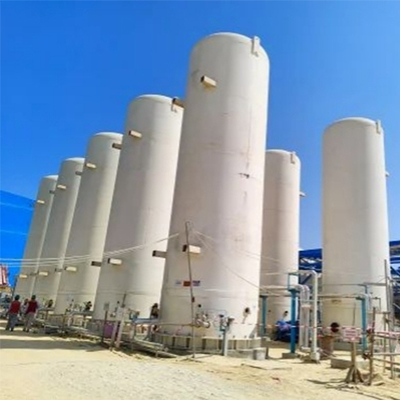

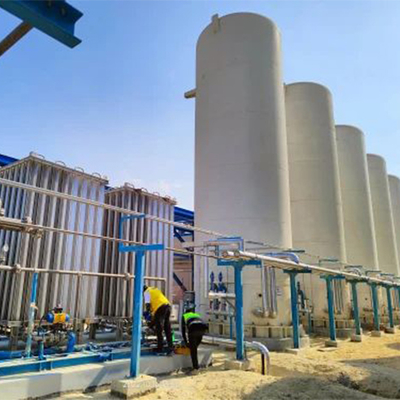

Description of cryogenic liquid storage tank
cryogenic liquid storage tank is double-walled; the inner material adopted stainless steel,the outer material is Q345R carbon steel. It concludes vertical and horizontal structure, adopting the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint, centralized control, safety, reliability, and easy operation and maintenance.
Product Specifications
|
Volume (M3) |
Working Pressure (MPa) |
Working Medium |
Weight (KG) |
Size(mm) |
|
5 |
0.8 |
liquid oxygen liquid nitrogen liquid argon |
3412 |
Φ2000*5130 |
|
10 |
5378 |
Φ2100*7170 |
||
|
15 |
6415 |
Φ2500*6912 |
||
|
20 |
8255 |
Φ3000*6100 |
||
|
30 |
12899 |
Φ2900*8870 |
||
|
50 |
18960 |
Φ3100*12058 |
||
|
100 |
34480 |
Φ3600*15947 |
||
|
150 |
53500 |
Φ3600*23000 |
||
|
200 |
65500 |
Φ3924*26000 |
||
|
5 |
1.6 |
liquid oxygen liquid nitrogen |
3945 |
Φ2000*5130 |
|
10 |
6787 |
Φ2000*7895 |
||
|
15 |
8628 |
Φ2400*7552 |
||
|
20 |
10744 |
Φ2400*9371 |
||
|
25 |
13500 |
Φ2700*8980 |
||
|
30 |
14640 |
Φ2700*10310 |
||
|
50 |
23370 |
Φ3100*12058 |
||
|
100 |
44050 |
Φ3400*17930 |
Our product Advantages
Best Raw Materials
The raw materials are high-strength steel plates specially used for pressure equipment, which are directly customized from first-tier steel mills at home and abroad. The materials are traceable, and the high cost guarantees high quality.
Uniform Weld Seam Appearance
With argon-shielded welding, the weld seam has a uniform appearance. The transitions between weld beads and between weld beads and base metals are smooth.
4-Layer Painting
A 4-layer paint spraying process is adopted to ensure the anti-corrosion performance and service life of the equipment.
Advanced Testing Technology
100% re-inspection is conducted on raw materials and accessories when they enter the factory. Ultrasonic internal quality testing, mechanical property testing, chemical composition testing, and impact performance testing are carried out to ensure the quality of the tanks.
