Product Details:
|
| Color: | White | Size: | Customizable |
|---|---|---|---|
| Material: | Metal | Condition: | New |
| Feature: | High Efficiency | Weight: | By Product |
| Design Pressure(MPa): | 1.6 | Key Selling Points: | Easy To Operate |
| High Light: | 5m3 Cryogenic Oxygen Storage Tanks,1.6mpa Cryogenic Oxygen Storage Tanks,200 cubic meter small LNG tanks |
||

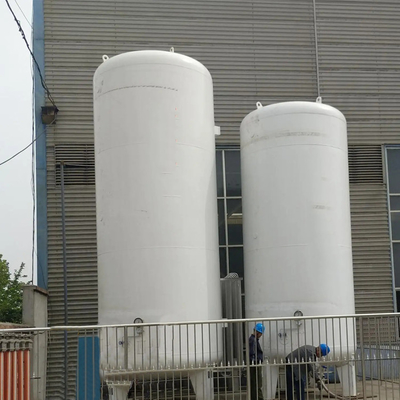

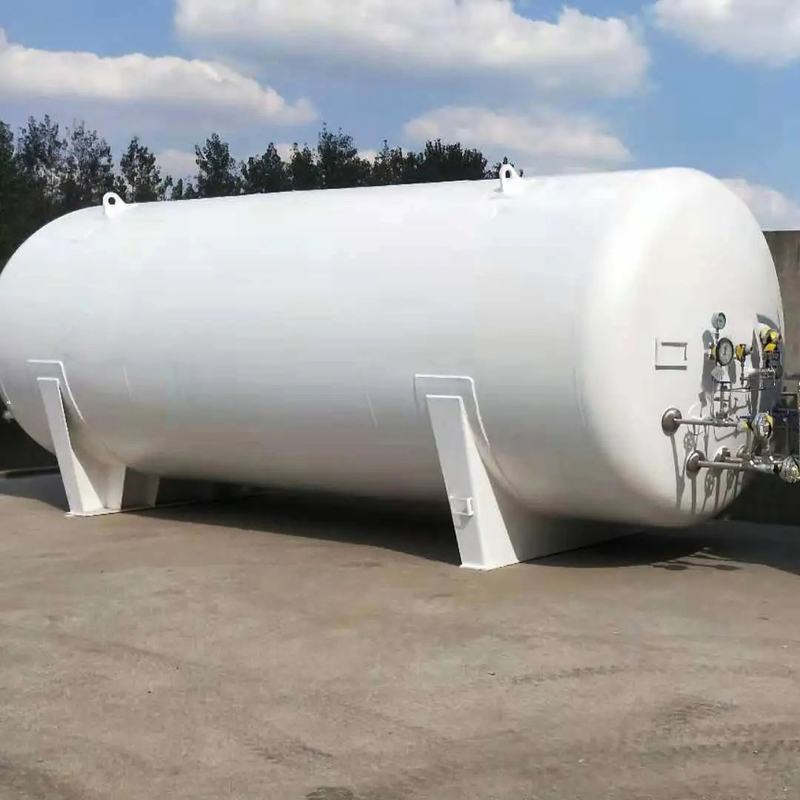

Cryogenic Liquid Oxygen Storage Tank
Description
Cryogenic oxygen storage tank is a double layer vacuum powder heat preservation pressure vessel specially made for storage and supply of low temperature liquid oxygen. Cryogenic oxygen storage tanks can be widely used in many fields.
specifications
|
The effective volume (m3) |
Maximum working pressure (MPa) |
Empty container (kg) |
Outline dimension (Diameter * height) |
|
5 |
0.2 | 3623 |
1916x5260 |
| 0.8 | 3825 | ||
| 1.6 | 5118 | ||
|
10 |
0.2 | 5790 |
2316x5970 |
| 0.8 | 6235 | ||
| 1.6 | 10710 | ||
| 2.0 | 13200 | ||
|
15 |
0.2 | 7805 |
2516x6875 |
| 0.8 | 8033 | ||
| 1.6 | 8531 | ||
|
20 |
0.2 | 9175 |
2516x8630 |
| 0.8 | 9950 | ||
| 1.6 | 12030 | ||
|
30 |
0.2 | 13527 |
2720x10230 |
| 0.8 | 15100 | ||
| 1.6 | 18110 | ||
|
50 |
0.2 | 18650 |
3020x12670 |
| 0.8 | 21565 | ||
| 1.6 | 26740 | ||
|
100 |
0.2 | 36570 |
3524x17040 |
| 0.8 | 44595 | ||
| 1.6 | 53550 | ||
|
150 |
0.2 | 60878 |
3928x20210 |
| 0.8 | 72365 | ||
| 1.6 | 88663 | ||
|
200 |
0.2 | 76838 |
4724x19192 |
Matters needing attention
1. After the customer receives the liquid oxygen storage tank, the tank should be pre-cooled first. After the temperature inside the tank reaches a certain temperature, the liquefied gas should be filled. When the storage tank is idle, it should be placed in a dry and ventilated place to prevent the tank from moisture.
2. In the process of using the storage tank, check the use state of the storage tank at any time, clean the external ice cubes in time, keep the storage tank clean and tidy, do not place plastic sheets and other objects outside the storage tank to increase blockage
3. In order to prevent the erosion of the tank wall, the inside of the tank needs to be cleaned once a year. If it is not necessary to reduce the number of opening the liquid oxygen tank, the tank must be fixed with a rope during transportation to keep the liquid oxygen tank upright and prevent violent vibration caused by collision
Advantage
1. The cryogenic storage tank uses special anti-corrosion coating technology, which is a high-quality process of innovative sandblasting and rust removal. It can ensure that the storage tank has excellent anti-corrosion performance after treatment;
2. The cryogenic storage tank body specially adopts advanced welding technology, can make the tank integrated molding, forming the tank is convenient for daily maintenance and beautiful appearance;
3. Storage tank supporting facilities are complete, you can quickly learn the use of storage tank; The storage tank is equipped with safety emergency protection device, so that the daily evaporation rate of the cryogenic tank is lower than other tanks and the operation is safe and reliable.
