Product Details:
|
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product |
|---|---|---|---|
| Design Standard: | ASME, ISO,CE | Working Temperature(℃): | -196 - 40 ℃ |
| Key Selling Points: | Energy Saving | Working Pressure: | 8bar |
| High Light: | 25m3 liquid nitrogen storage vessel,8 bar liquid nitrogen storage vessel,15000 Liter LNG bullet tanks |
||

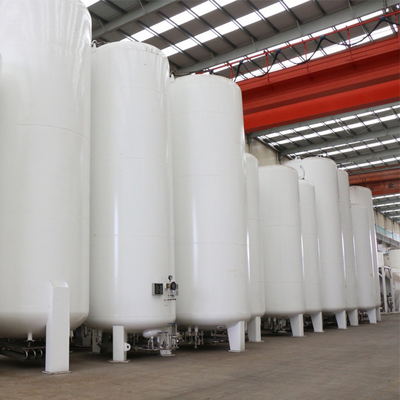

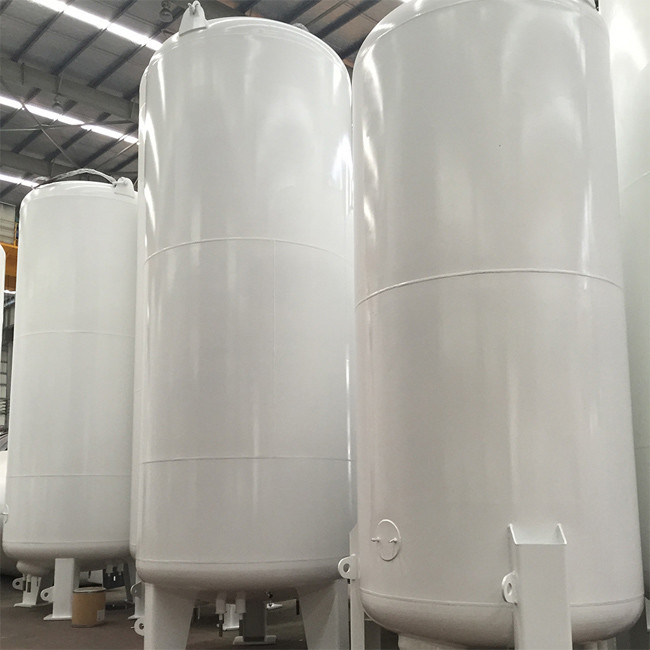

25m3 Cryogenic Storage Tank Used For Liquid N2 Gas
Description
The cryogenic liquid nitrogen storage tank is equipped with a steel bracket, which is easy to install and occupies a small area, saving installation time. The cryogenic liquid nitrogen storage tank has strong corrosion resistance and is suitable for a variety of installation environments with harsh external conditions, as well as for various liquid gases with different temperature requirements
Parameter
| NO. | Model | Outline Size | Net Weight(KG) | Type |
| 1 | 5/0.8 | Φ1916*5172 | 3930 |
Vertical
|
| 2 | 10/0.8 | Φ2316*5981 | 5840 | |
| 3 | 15/0.8 | Φ2316*8035 | 7900 | |
| 4 | 20/0.8 | Φ2716*7377 | 9250 | |
| 5 | 30/0.8 | Φ2920*8904 | 12600 | |
| 6 | 40/0.8 | Φ2920*11290 | 16000 | |
| 7 | 50/0.8 | Φ3220*11304 | 18700 | |
| 8 | 80/0.8 | Φ3420*14920 | 31200 | |
| 9 | 100/0.8 | Φ3420*18102 | 37200 | |
| 10 | 150/0.8 | Φ3724*22128 | 53200 | |
| 11 | 200/0.8 | Φ4024*24085 | 69400 | |
| 12 | 50/1.6 | Φ3220*11304 | 25600 | |
| 13 | 100/1.6 | Φ3520*17276 | 46300 |
configure
1. cryogenic tank liquid nitrogen storage tank decompression device
2. Inner container of liquid nitrogen and oxygen tank
3. Insulation layer (pearl sand)
4. Liquid nitrogen tank shell
5. Instruments (differential pressure gauge, oxygen pressure gauge, combination valve)
6. Drain and vacuum valve
7. Liquid nitrogen storage tank pipeline valve
FAQ
Q: How long is your delivery time?
A: It depends on your order request, generally 30-75 days
Q: What’s the order process?
A:1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4) Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) What's the capacity, working pressure and medium do you need?
2) We have vertical type and horizontal type, which one do you prefer?
3) Do you have any request for the design standard?
