Product Details:
|
| Outer Material: | Q235R/Q345R Carbon Steel | Working Pressure(MPa): | 0.86 MPa |
|---|---|---|---|
| Warranty: | 1 Year | Working Pressure: | 0.8Mpa / 8Bar |
| Certification: | ASME ISO9001 ISO14001 | Working Temperature(℃): | -196 ℃ |
| Key Selling Points: | Competitive Price | Installation TypeVertical Liquid Oxygen Storage Tank: | Vertical Liquid Oxygen Storage Tank |
| Durable Years: | 20 Years | ||
| High Light: | 0.86 MPa large liquid nitrogen storage tank,20m3 large liquid nitrogen storage tank,5m3 Dewar Tank |
||

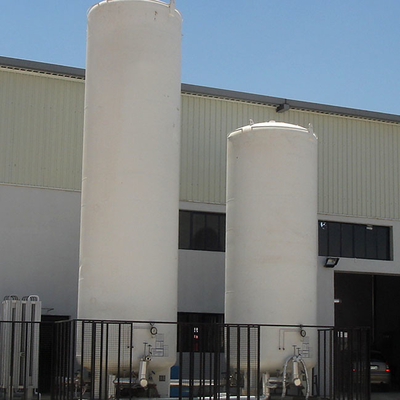

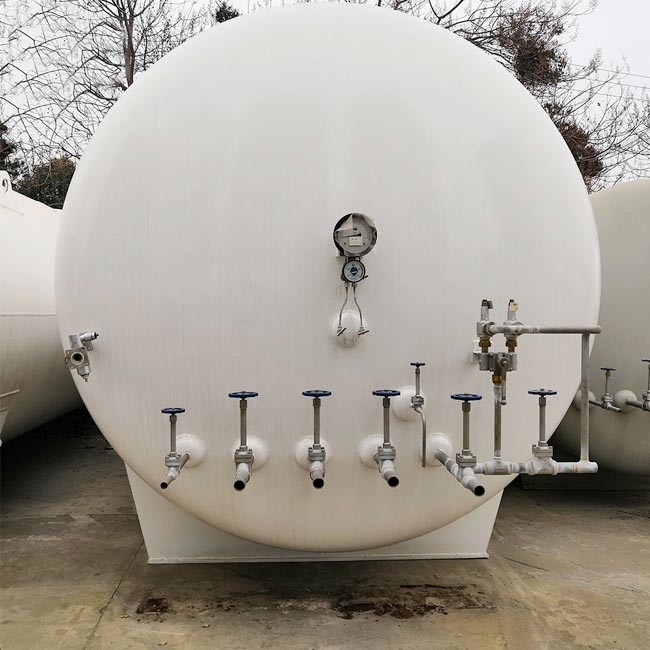

Large Capacity Cryogenic Liquid LNG Storage Tank For Gas Storage
Description
LNG cryogenic storage tank is a specially researched and designed super-grade pressure vessel for storing liquefied natural gas. The storage tank is manufactured and accepted in strict accordance with the standard requirements. It is characterized by the use of a double-layer vacuum design, which can achieve a good thermal insulation effect and ensure a low evaporation rate of the internal medium.
Parameter
| Volume(m3) | Pressure(Mpa) | Size(mm) | Weight(kg) | Material | Filling Rate |
| 5 |
0.8 |
Φ2000×5130 | 3412 |
Outer :Q245-R
Inner:S30408 |
0.95 |
| 10 | Φ2100×7170 | 5378 | |||
| 15 | Φ2500×6912 | 6415 | |||
| 20 | Φ2500×8756 | 8255 | |||
| 30 | Φ2900×8870 | 12899 | |||
| 50 | Φ3100×12058 | 18960 | |||
| 100 | Φ3600×15947 | 34480 | |||
| 5 |
1.6 |
Φ2000×5130 | 3945 |
Outer :Q245-R
Inner:S30408 |
0.95 |
| 10 | Φ2000×7895 | 6787 | |||
| 15 | Φ2400×7552 | 8628 | |||
| 20 | Φ2400×9371 | 10744 | |||
| 30 | Φ2700×10310 | 14640 | |||
| 50 | Φ3100×12058 | 23370 | |||
| 100 | Φ3400×17930 | 44050 |
Advantage
1. Quality: We guarantee the quality of our products. If you buy our products, whenever you have any questions about our products, please tell us, we will never cause product troubles to any customers.
2. After-sales service: Whenever our customer has a problem, we will give you feedback within 24 hours after receiving your problem. If necessary, we can provide customers with services such as installation and startup.
Packing and shipping
We adopt different packaging methods according to specific requirements. Bags and wooden boxes are usually used for waterproof, dustproof and shockproof purposes, ensuring that each device remains intact after delivery.
