Product Details:
|
Outer Cylinder Material:: | Q245R | Dimension(L*W*H): | 5965mm*2316mm*2355mm |
---|---|---|---|
Type: | Vertical | Video Outgoing-inspection: | Provided |
Advantage: | Long Service Time | Inner Cylinder Material:: | S30408 |
High Light: | Q245R Cryogenic Liquid Storage Tank,Vertical Cryogenic Liquid Storage Tank |

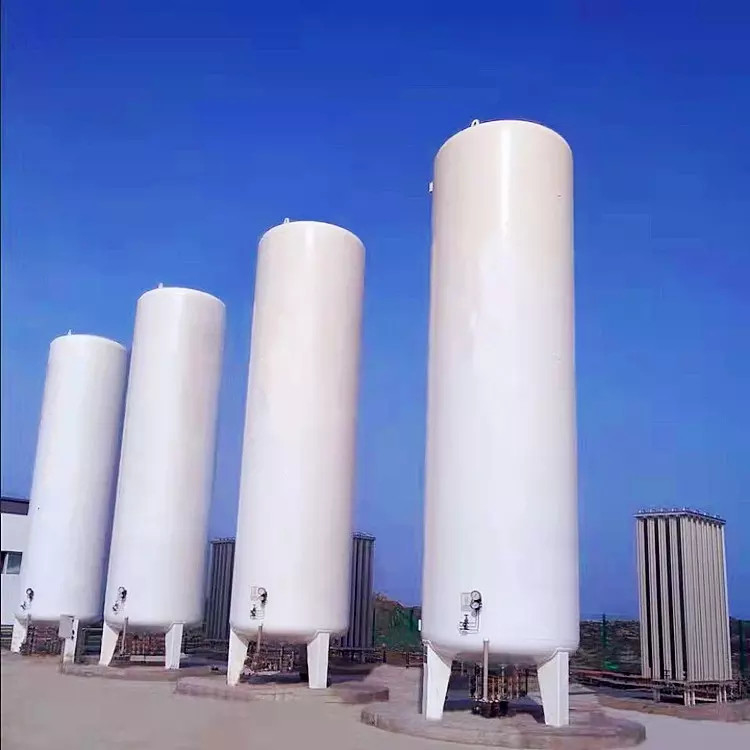

Cryogenic Liquid Cryogenic Storage Tank
Description
A cryotank or cryogenic tank is a tank that is used to store material at very low temperatures. The term "cryotank" refers to storage of super-cold fuels, such as liquid oxygen and liquid hydrogen.
Parameter
Tank type
|
Model
|
Effective Capacity(m3)
|
Working pressure(Mpa)
|
Dimension(mm)
|
Cryogenic Liquefied CO2 tank
|
CFL-5/2.16
|
5
|
2.16
|
Φ1916x5229
|
CFL-10/2.16
|
10
|
2.16
|
Φ2316x5965
|
|
CFL-15/2.16
|
15
|
2.16
|
Φ2416x7402
|
|
CFL-20/2.16
|
20
|
2.16
|
Φ2616x7938
|
|
CFL-30/2.16
|
30
|
2.16
|
Φ2920x8914
|
|
CFL-50/2.16
|
50
|
2.16
|
Φ3120x11184
|
|
CFL-60/2.16
|
60
|
2.16
|
Φ3324x12460
|
|
CFL-100/2.16
|
100
|
2.16
|
Φ3528x16933
|
Feature
