Product Details:
|
| Capacity: | 5 M³-300 M³ | Weight: | Customized,Actual Weight |
|---|---|---|---|
| Warranty: | 1 Year | Dimension(l*w*h): | Customerized |
| Material: | 06Cr19Ni10/Q235B | Color: | White |
| Type: | Vertical And Horizontal | Usage: | Cryogenic Liquid Storage,liquid Gas Storage Tank,Cryogenic Storage Tank |
| Application: | Pharmaceutical,Fuel Oil,Cold Storage,Chemical,juice | Working Pressure: | 0.8Mpa,8bar/16bar,0.8-1.75Mpa Liquid Oxygen Transport Tank,1-40Mpa |
| Working Medium: | LN2,LO2,LPG,LNG,LAr | Design Temperature: | -196℃/ +40℃ |
| Highlight: | M3 Cryogenic Transport Tank,LNG Cryogenic Transport Tank,Vertical 5 M3 Cryogenic Transport Tank |
||

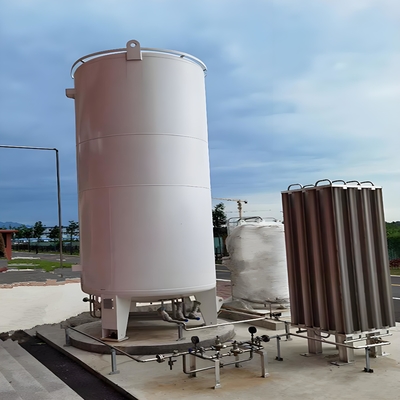

Our vacuum insulated cryogenic tank is double-walled cylindrical vacuum tank with low thermal conductive perlite sand in between. The sand layer goes through vacuum treatment to reduce loss due to evaporation.
The tank has two lower liquid inlet valves. While one is working, the other one stands by. So, even if one of them is damaged, the tank still works normally.
This series of liquid gas tank includes LOX tank, LN2 tank, LAR storage tank, LCO2 storage tank, and LNG storage tank. In addition to the existing products, our company can design and manufacture customized tanks.
The vacuum insulated cryogenic tank is widely used in machinery, chemical, chemical fiber, medical, food, metallurgy, mining, and electronic industries.
Features
Ø Good durability and security.
Ø Compact structure, small footprint, centralized control.
Ø Excellent heat preservation, small evaporation loss.
Ø Easy operation and maintenance.
|
Storage medium |
Effective volume |
Max working pressure (Mpa) |
Design pressure (Mpa) |
Main material |
Empty weight (kg) |
Dimension (mm) |
|
LO2,LN2,LAr |
5 |
0.78 |
0.92 |
06Cr19Ni10/ |
3981 |
2016X4976 |
|
LO2,LN2,LAr |
10 |
0.78 |
0.92 |
06Cr19Ni10/ |
6403 |
2416X5797 |
|
LO2,LN2,LAr |
10 |
1.57 |
1.75 |
06Cr19Ni10/ |
7376 |
2416X5797 |
|
LO2,LN2,LAr |
20 |
0.78 |
0.92 |
06Cr19Ni10/ |
11135 |
2416X10106 |
|
LO2,LN2,LAr |
20 |
1.57 |
1.75 |
06Cr19Ni10/ |
12885 |
2416X10106 |
|
LO2,LN2,LAr |
30 |
0.78 |
0.92 |
06Cr19Ni10/ |
14685 |
2616X11900 |
|
LO2,LN2,LAr |
50 |
0.78 |
0.92 |
06Cr19Ni10/ |
24043 |
3124X12731 |
|
LO2,LN2,LAr |
100 |
0.78 |
0.92 |
06Cr19Ni10/ |
43378 |
3624X17355 |
|
LO2,LN2,LAr |
200 |
0.78 |
0.92 |
06Cr19Ni10/ |
89070 |
3824X29000 |
Ø In terms of energy supply, LNG storage tanks provide a stable gas source for urban gas pipelines.
Ø Through gasification devices, liquefied natural gas is converted into gaseous natural gas and delivered to user ends, meeting the gas needs of residents' lives and commercial activities.
Ø In the industrial field, as a clean energy source, LNG can be applied in power plants, chemical plants, etc., to meet the fuel demand in the industrial production process.
Ø In addition, LNG storage tanks also play a role in strategic reserves, ensuring energy security in case of natural gas supply interruptions or peak demand.
Q: Can your products be customized?
A: Considering the different sizes, materials, and heat exchange areas required for heat exchangers in different industries, our products can be customized according to your needs.
Q: What is the price of shipping?
A: The price will vary depending on the delivery port.
Q: What do I need to provide for custom heat exchangers?
A: Technical drawings and specification documents are best, or you can list the key parameters of the design.
Q: Can I have your catalog and price list?
A: Prices may vary depending on materials, standards, and designs. Welcome to contact us for accurate prices.
Q: What is your production standard? Can you manufacture your products under ASME standard?
A: Our products are designed, manufactured and tested as per reference standards of GB150, Safety technology supervision regulations of pressure vessels and some other reference Chinese standards.
Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certifcates ,Grade GC1 Pressure Pipe& Vessel Construction Certifcates, ISO9001 Quality Certificate, ASME Certificate and U Stamp. So, if you ask for ASME stamp, we are able to manufacture your products under ASME standard.
Q: What's the warranty for the storage tanks?
A: Our warranty is one year after shipment. Within one year, we will send broken spare parts at our cost upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
