Product Details:
|
| Outer Material: | Q235R/Q345R Carbon Steel | Color: | Based On Customer's Requirement |
|---|---|---|---|
| Capacitycapacity: | 10000-100000 Litres | Usage: | Storage And Transportation Of Cryogenic Liquids |
| Insulation Mode: | Vacuum Powder | Pressure: | 0.8Mpa |
| Max Working: | 3 MPa | Key Words: | Cryogenic Liquid Storage Tank |
| Design Code: | ASME | Material: | Stainless Steel |
Description
A cryotank or cryogenic tank is a tank that is used to store material at very low temperatures.
Cryogens should be stored in containers specifically designed to house them.
The containers should be insulated and double walled.
Store all cryogenic liquid containers upright in well- ventilated areas. Handle them carefully, and avoid dropping, rolling or tipping them on their sides.
LNG Cryogenic Storage Tank Technical Specification
|
Geometric |
Geometric |
Work Pressure |
Overall Dimensions |
|

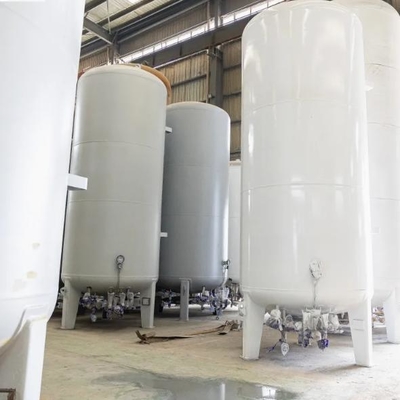

Vertical |
10 |
≤0.80 |
5800*2112*2196 |
|
≤1.60 |
|||
|
20 |
≤0.80 |
10320*2196*2196 |
|
|
≤1.60 |
|||
|
50 |
≤0.80 |
5975*2135*2077 |
|
|
≤1.60 |
|||
|
Horizontal |
10 |
≤0.80 |
6080*2362*2200 |
|
≤1.60 |
|||
|
20 |
≤0.80 |
10495*2362*2200 |
|
|
≤1.60 |
|||
|
50 |
≤0.80 |
11200*3200*3500 |
|
|
≤1.59 |
LNG Cryogenic tanks are integral to the entire LNG cryogenic treatment process. Without them, it would not be possible to transport and store cryogenic LNG liquids.
Their efficacy isn’t just limited to the storage and transport of the LNG . These tanks also play an important role in the deep LNG cryogenic treatment process. As previously discussed, it’s not possible to do this with a conventional tank. There would be too many factors at play that would disrupt the treatment process. That’s what makes LNG cryogenic tanks so vital to the entire process. Without them, deep LNG cryogenic treatment can’t take place.
Production Process of Cryogenic Storage Tanks
Packaging & Shipping

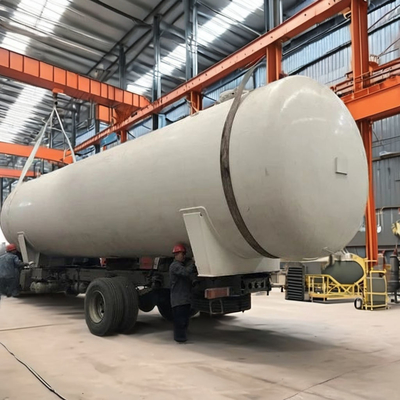

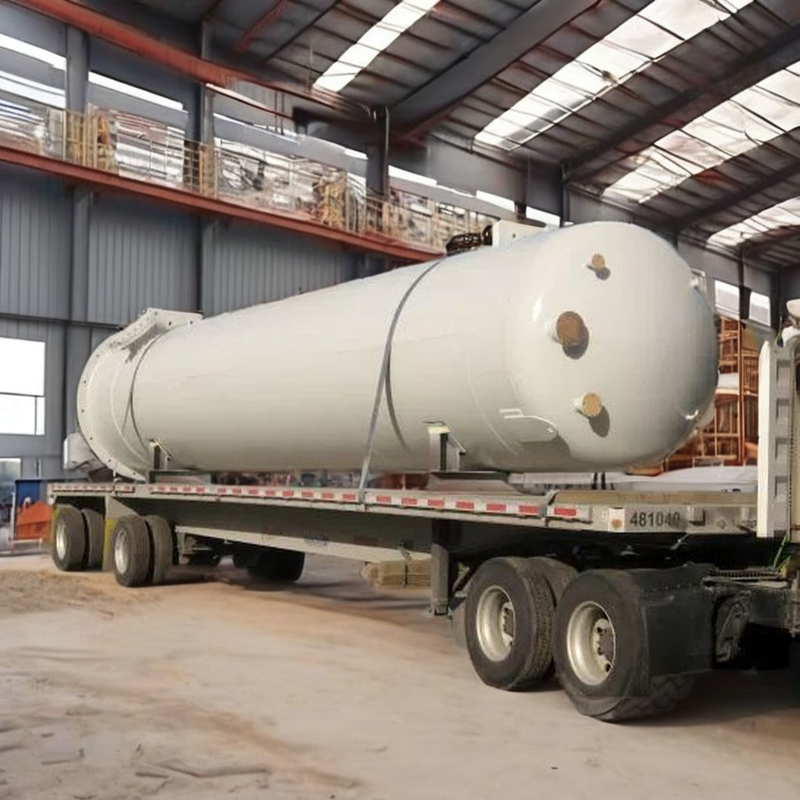

Cryogenic storage tank will be packaged by waterproof plastic woven clothes, and loaded into container or by bulk ship.
ABOUT US
GNEE was founded in 2008. It is a manufacturer and supplier with rich experience in providing customized product services in the storage tank field.
We have always taken "one-stop service to make selection easier" as our mission, and are committed to providing customers with high-quality products and reliable service support.
If you have any Inquiry in regards to LNG Cryogenic tanks please contact us on +86 15824687445 or email us on info@gneeheatex.com Our can guide you on the same and inform in regards to other various metals fit for your applications.
FAQ
Q:Is there dicount if with large qty.?
A: Sure, we will provide you best competitive price as per your working needs, and big dicount with more qty.
Q:What's your main product?
A: We have cryogenic storage tanks for liquid O2, liquid Ar2, liquid N2, and Liquid CO2, both vertical type and horizontal type.
Also we have smaller type liquid nitrogen containers with various volumes from 2L to 100L.
Q:Can I visit your company?
A: Yes, of course, you are welcome to visit our company for face to face meeting.
Q:How shall I contact you for price?
A: Please send us inquiry.
