Product Details:
|
| Filling Rate: | 95% | Port: | China |
|---|---|---|---|
| Max Working: | 3 MPa | Valve Type: | Cryogenic Valve |
| Usage: | Store,cryogenic Liquid Storage | Bottle Filling Rate: | 95% |
| Working Pressure: | 16bar | Inner Cylinder Material: | Stainless Stain |
| Weight: | By Product | Inner Material: | Stainless Steel |
| Medium: | Liquid Ammonia | Marketing Type: | Ordinary Product |
Description
Our tanks can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.

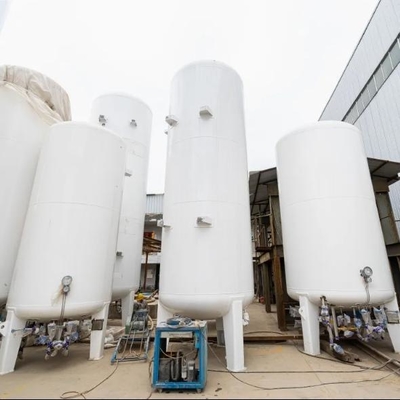

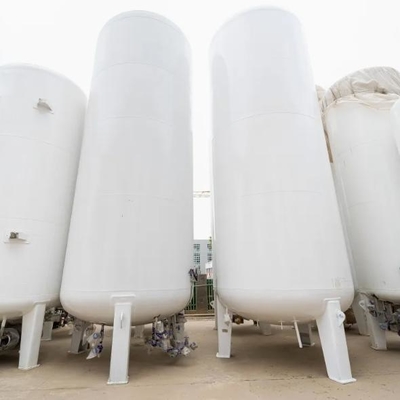

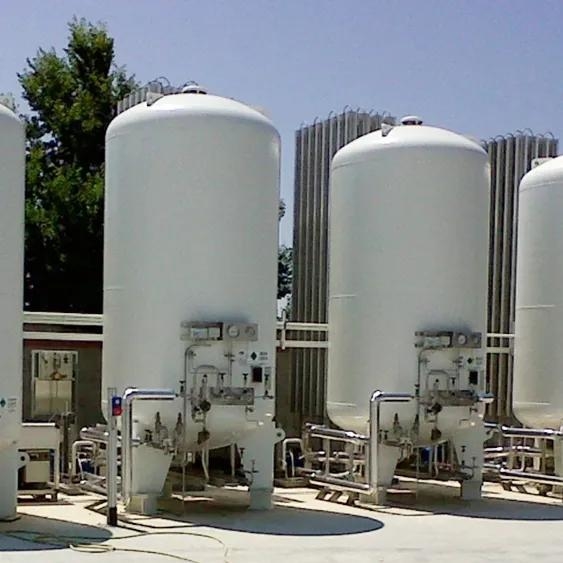

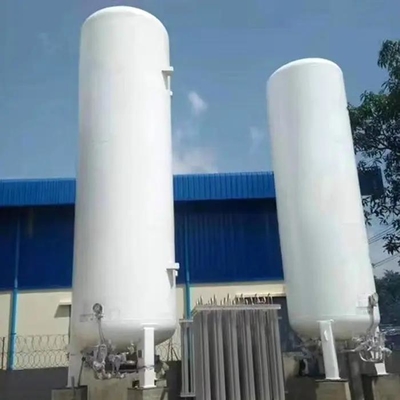

Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation.
The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry.
The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.
Cryogenic Storage Tank for LNG Parameters
|
Design Pressure(Mpa) |
0.88 |
1.68 |
1.60 |
1.76 |
|
Geometric Volume(m3) |
20 |
20 |
16 |
18 |
|
Main Material |
S30408/Q345R |
S30408/Q345R |
S30408/Q345R |
S30408/Q345R |
|
Tank Size |
6058*2438*2591 |
6058*2438*2591 |
6058*2438*2591 |
6058*2438*2591 |
|
Container Size |
Φ2412X5950 |
Φ2412X5950 |
Φ2400X5936 |
Φ2416X5720 |
|
Weight(KG) |
9360 |
11360 |
9950 |
12515 |
GNEE LNG Storage Tank
LNG storage tank manufacturer-GNEE in strict accordance with the national standard design and manufacture, can also according to customer requirements design and manufacture volume reached more than 200 m3 cryogenic liquid storage tank, and can provide various specifications of the carburetor, regulating lever measurement, gas buffer tank, combined pressure regulating device (PCM) PLC station control system (such as unattended) gas application form a complete set of equipment.
GNEE LNG ISO Tank Container
ISO LNG Tank Container constitute one type of GNEE's standardized, modularized and light-weight transport equipment, and having inherited the feature of transport convenience of containers and integrated the profound storage and transport-related technologies of GNEE, they can be used for multimodal transport (marine, railway and road transport ) and for the large-quantity storage and transport of cryogenic liquid. By virtue of their standardized and modularized design, ISO tank containers can organically combine with upstream and downstream LNG application facilities and perfectly blend into the overall solution for application as the storage and transport link, thus creating higher values for clients.
GNEE LNG Cylinder
The LNG Cylinder is a vacuum insulated storage tank with unique vacuum insulation technology and excellent insulation performance. They are used for the storage and transport of cryogenic liquefied LNG as well as other liquids that can be used for the road transport of cryogenic liquids, mainly for LNG filling and storage of cryogenic liquids, but also for the on-site storage and supply of LNG. All models are highly standardized and the dimensions are unified, which is convenient for customers to choose and transport.
Production Process of Cryogenic Storage Tanks
ABOUT US
GNEE's core value proposition is to provide customers with high-quality, customized products and services, helping them maximize cost-effectiveness. By continuously optimizing production processes and innovating product designs, we are committed to becoming the world's most internationally competitive supply chain group, enabling customers to make wise choices even in complex market environments.
We can help you get the best equipment for your application. Contact us today.
