50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders

50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders
50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders 50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders 50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders 50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders

Large Image :  50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders

Product Details:
Place of Origin: CHNA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Depend on product
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: Annual Production 30,000 tons
Contact Now

50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders

Description
Design Temperature: -40°C Item: Liquid Cryogenic Storage Tank
Capacity: 500-50000 Liters Fluid: LNG, LOX, LIN, LAR, LCO2, Etc.
Size: Customer's Requst Form: Large Sized
Durable Years: 20 Years Cryogenic Medium: Liquid Oxygen, Liquid Nitrogen, Liquid Argon
Outer Cylinder Material: Q245R Key Words: Cryogenic Liquid Storage Tank
Highlight:

8 bar cryogenic liquid storage tank

,

50 m³ oxygen cylinder filling tank

,

cryogenic storage tank with warranty

50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders
Product Specifications
Attribute Value
Design Temperature -40°C
Item Liquid Cryogenic Storage Tank
Capacity 500-50000 liters
Fluid LNG, LOX, LIN, LAR, LCO2, etc.
Size Customer's Request
Form Large sized
Durable Years 20 years
Cryogenic Medium Liquid Oxygen, Liquid Nitrogen, Liquid Argon
Outer Cylinder Material Q245R
Product Description

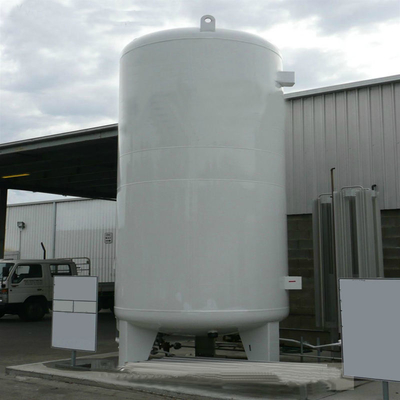

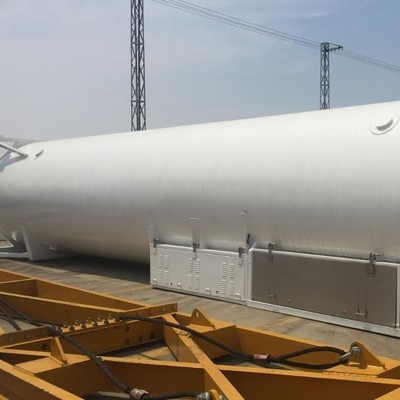

The cryogenic liquid storage tank features a double wall construction, with the inner material made of S30408 stainless steel and the outer material of Q245R carbon steel. Available in both vertical and horizontal structures, it utilizes vacuum powder insulation for superior thermal performance. The tank offers advantages including compact structure, low evaporation rate, small footprint, centralized control, safety, reliability, and ease of operation and maintenance.

Technical Parameters
Parameter Value
Product Name 10m3 8Bar Large Scale Cryogenic Liquid Storage Tank Medical Liquid Oxygen Tank For Filling Gas Oxygen Cylinders
Effective Capacity (m³) 10
Working Pressure (MPa) 0.8
Working Medium Liquid Oxygen, Liquid Nitrogen, Liquid Argon
Inner Material S30408
Outer Material Q245R
Working Temperature -196℃ - 60℃
Dimension (mm) Φ2100*7170
Net Weight (mm) 5378
Design Standards ISO, CE, ASME
Thermal-insulating Model Vacuum Powder Insulation or multi-layer entwining thermal insulation
Placement Type Vertical Or Horizontal
50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders 0 50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders 1 50 M³ 8 Bar Cryogenic Liquid Storage Tank For Filling Gas Oxygen Cylinders 2
Advantages of Tank Container
Low Cost

Saving land and sea freight, lower cost when long-term use.

Convenient and Fast

Fast and convenient for loading and unloading, washing. Door to door by land transportation, railway, sea transportation.

Safety and Eco-Friendly

No leak or pollute the environment, and no pollute the goods themselves. The safest way to transport chemicals and food internationally recognized.

About Us

GNEE was founded in 2008 and is located at No.4-1114, Beichen Building, Beicang Town, Beichen District, Tianjin, China. It is an entity enterprise engaging in high-end industrial equipment manufacturing, focusing on the R&D, manufacturing, and related technical services of industrial heat exchange equipment and pressure vessels.

Since its establishment, the company has adhered to the philosophy of "achieving customers, making employees happy; embracing changes, valuing actions; there is no best, only better". With the goal of providing one-stop services to make choices easier, it has been deeply engaged in industrial heat exchange equipment for many years and has become an excellent and irreplaceable presence in the industry.
