30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C

30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C
30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C 30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C 30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C 30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C

Large Image :  30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Price: depend on product
Packaging Details: Wooden box packaging / Outer shell packaging
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now

30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C

Description
Applicable Industries: Manufacturing Plant, Energy & Mining Cooling System: Liquid Nitrogen
Empty Tank Weight: 89000kgs Fluid: LNG, LOX, LIN, LAR, LCO2, Etc.
Working Medium: Liquid CO2 Temperature Range: Below -150°C
Working Pressure: 1.6 MPa Height: 2591mm
Medium: LCo2 Application: Liquid Storage Tank
Highlight:

30m³ cryogenic storage tank -150°C

,

cryogenic storage tank 1.6 MPa

,

low temperature storage tank with warranty

30 M³ High Vacuum Double Layer Cryogenic Storage Tank
Product Description
This high-performance cryogenic storage tank features a double-layer vacuum insulation design for optimal thermal efficiency and safety in industrial applications.
Main Parameters
  • Storage medium: LO2, LN2, LAr, LCO2 or LNG
  • Working pressure: 0.2MPa-3MPa
  • Working temperature: Determined by the medium
  • Effective capacity: 3m³-20000m³
  • Manufacturing standards: A2, C2, GC1, GB-150, ASME, U STAMP, ISO9001:2008
Applications
The vacuum insulated cryogenic tank is widely used in machinery, chemical, chemical fiber, medical, food, metallurgy, mining, electronic and military industries.
Features
  • Excellent durability and security
  • Compact structure with small footprint
  • Superior heat preservation with minimal evaporation loss
  • Easy operation and maintenance
Product Parameters
Actual Volume (m³) Max Working Pressure (Mpa) Empty Container (kg) Overall Dimensions (diameter*height)
5 0.6 3623 1916*5260
0.8 3825
1.6 5118
30 0.6 13527 2720*10230
0.8 15100
1.6 18110
50 0.6 18650 3020*12670
0.8 21565
1.6 26740

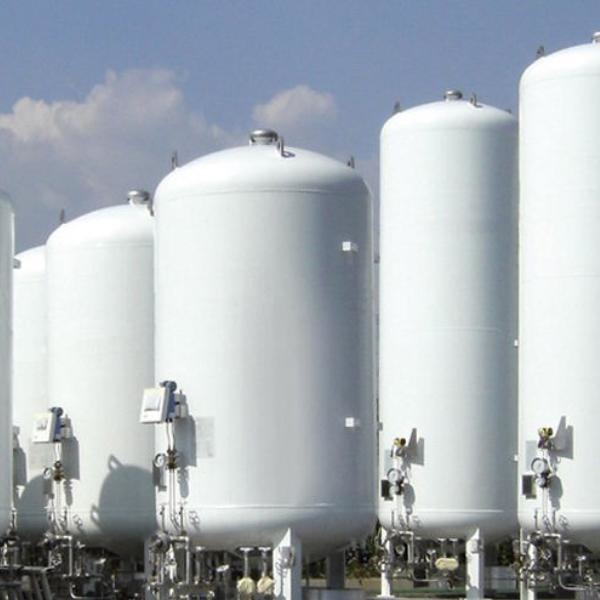

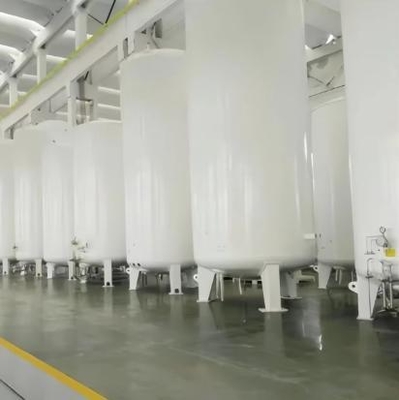

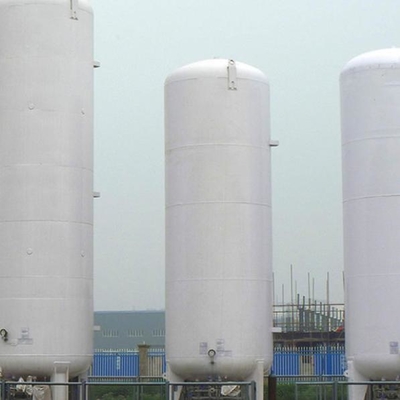

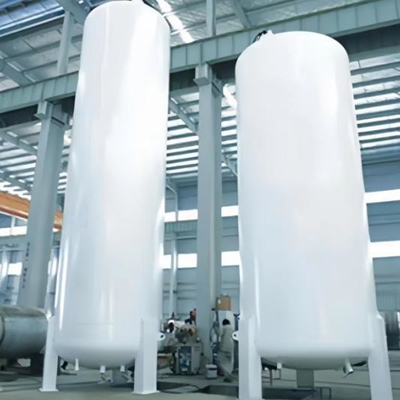

30m³ Cryogenic Storage Tank exterior view 30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C 1 30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C 2 30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C 3 30m³ Cryogenic Storage Tank with 1.6 MPa Pressure -150°C 4
Product Advantages
  • Pressurized storage tank designed for low temperature applications (-269°C)
  • 1-year warranty with high-quality materials: Q345R outer shell and Stainless Steel 304/316L/LSO inner lining
  • Available in vertical or horizontal configurations
  • ASME certified with vacuum powder insulation layer
  • Remote monitoring and control system with real-time data transmission
  • Operating pressure range: 0.1-10 MPA with 200m³ volume capacity
  • Ideal for LNG, liquid nitrogen, liquid oxygen, and other cryogenic liquids
Custom Solutions Available
Need storage tank specifications tailored to your requirements (vertical/horizontal structure, anti-corrosion grade, sealing solution)? Contact our experts for personalized consultation.
