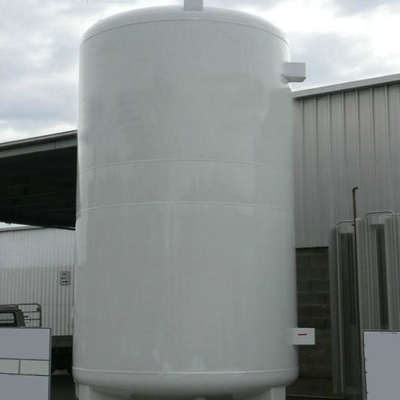

ASME/GB Standard Cryogenic Storage Tank 1000L 304 Stainless Steel

Our cryogenic tanks are strictly designed and manufactured per GB150, GB18442, ASME "U" Stamp and other national codes. They are widely used for storage and application of Oxygen, Nitrogen, Argon, Carbon Dioxide, Natural Gas, Ethylene and other cryogenic gases with various MAWP and configurations.

For micro-tanks, volume ranges from 0.5m³-5m³ with MAWP from 1.6Mpa-3.6Mpa. For bulk tanks, volume ranges from 10m³-100m³ with MAWP from 0.8Mpa-1.6Mpa.

• Advanced Insulation Design: Vacuum powder insulation method with double-layer container structure, filled with perlite and evacuated for optimal insulation performance.
• Safety and Reliable Technology: Dual safety valve configuration with "main and standby" setup for continuous operation during inspections.
• Convenient Operation: Equipped with pressure gauge, differential pressure level gauge, and liquid level comparator for intuitive monitoring.
• Flexible Choices: Available in vertical and horizontal types (5m³-200m³) with customizable materials (16MnDR inner layer, Q245R outer layer).
• Comprehensive Detection System: Dedicated tank vacuum valve for periodic vacuum level checks to ensure safe operation.
