100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa

100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa

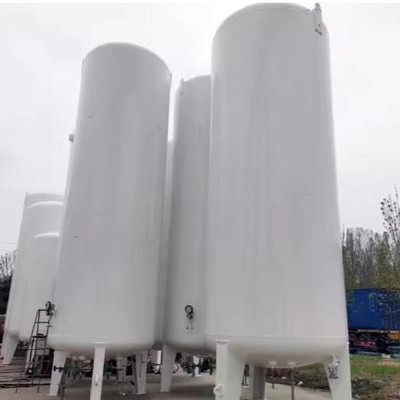

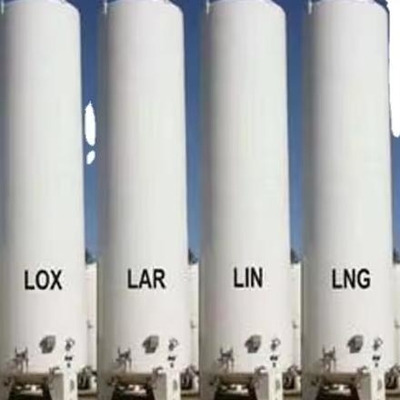

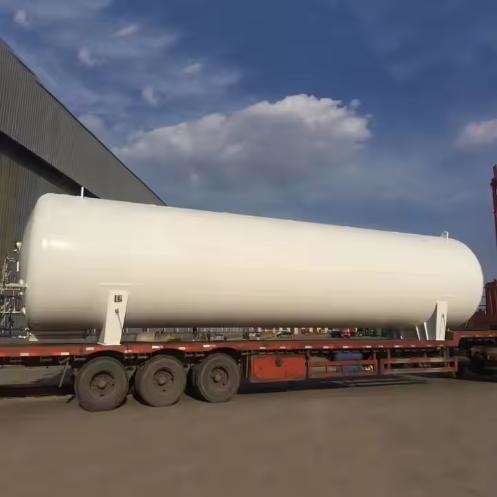

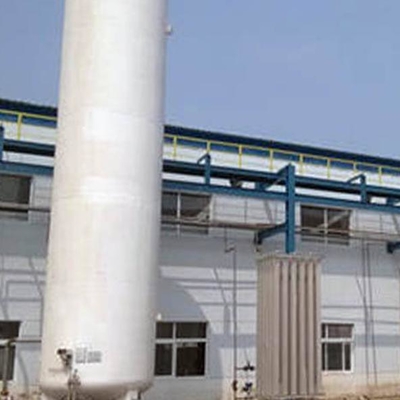

100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa 100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa 100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa 100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa

Large Image :  100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Price: depend on product
Packaging Details: Wooden box packaging
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Contact Now

100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa

Description
Highlight:

horizontal cryogenic N2 storage tank

,

0.8MPa liquid nitrogen tank

,

100m3 cryogenic storage tank

100m³ Horizontal Type Cryogenic Liquid Storage Tank (Liquid N₂)
Product Description

This cryogenic liquid oxygen storage tank features a double-wall construction with 304/316 stainless steel inner material and Q235B carbon steel outer material. Available in both vertical and horizontal configurations, it utilizes vacuum powder insulation for superior thermal efficiency. The design offers compact structure, low evaporation rate, small footprint, centralized control, and safe, reliable operation with easy maintenance.

Product Parameters
Nominal Volume (L) Effective Volume (L) Maximum Filling Volume (kg) Daily Evaporation Rate Max Working Pressure (MPa) Outer Diameter (mm) Total Height (mm) Empty Weight (kg)
10,523 10,000 8,100 / 11,410 / 13,930 0.495 0.8 2,300 5,850 6,280
10,523 10,000 8,100 / 11,410 / 13,930 0.495 1.6 2,300 5,850 7,250
21,000 20,000 16,200 / 22,820 / 27,860 0.45 0.8 2,600 7,880 9,850
21,000 20,000 16,200 / 22,820 / 27,860 0.45 1.6 2,600 7,880 12,335
31,600 30,000 24,316 / 34,255 / 41,820 0.396 0.8 2,600 10,820 14,625
31,600 30,000 24,316 / 34,255 / 41,820 0.396 1.6 2,600 10,820 14,625
52,600 50,000 40,500 / 57,050 / 69,650 0.315 0.8 3,000 12,590 21,550
52,600 50,000 40,500 / 57,050 / 69,650 0.315 1.6 3,000 12,590 26,000
106,200 100,000 81,000 / 114,100 / 139,300 0.245 0.8 3,400 19,500 45,000
106,200 100,000 81,000 / 114,100 / 139,300 0.245 1.6 3,400 19,500 45,000
100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa 0 100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa 1 100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa 2 100m3 Horizontal Cryogenic Liquid N2 Storage Tank 0.8MPa 3
Manufacturing Process
  1. Material Preparation: Selection and preparation of steel plates including cutting, bending, and surface treatment (rust removal, cleaning, spraying).
  2. Welding Process: Core manufacturing step involving plate lofting, assembly, and internal/external welding with subsequent polishing and anti-corrosion treatment.
  3. Quality Inspection: Comprehensive testing including material inspection, welding quality assessment, dimensional verification, and pressure testing using X-ray and ultrasonic methods.

Our manufacturing process ensures strict quality control at every stage to deliver storage tanks that meet all industry standards and customer requirements.

Our Services
  • Strict quality control and guaranteed delivery timelines
  • Direct factory pricing for competitive advantage
  • Prompt response to all inquiries within 12 hours
  • Comprehensive OEM & ODM services available
  • First-class after-sales support and technical assistance
Customization & Inquiries

We specialize in customized storage tank solutions including special volumes, explosion-proof grades, and low-temperature adaptations. Contact our engineering team for specific technical proposals.

Email: info@gneeheatex.com

WhatsApp: +86 158 2468 7445
