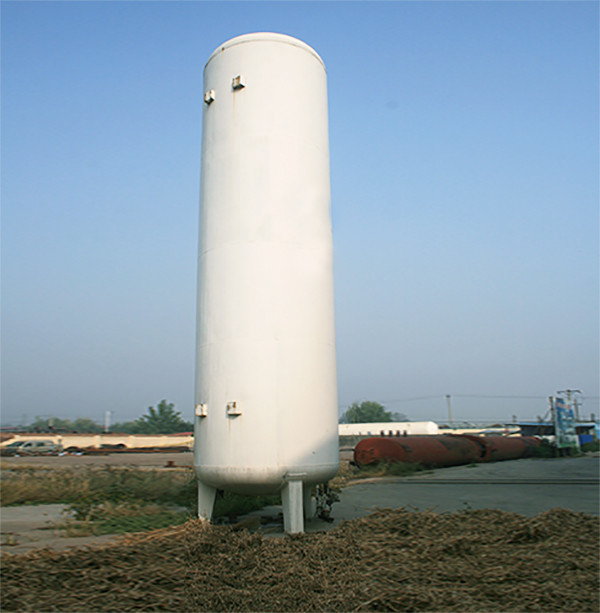

5-100ton Cryogenic Storage Tank for LNG LOX -196℃ to 50℃

Large Image : 5-100ton Cryogenic Storage Tank for LNG LOX -196℃ to 50℃

Product Details:

Place of Origin:	CHINA
Brand Name:	GNEE
Certification:	SGS

Payment & Shipping Terms:

Minimum Order Quantity:	≥1sets
Price:	depend on product
Packaging Details:	Wooden box packaging
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Contact Now

5-100ton Cryogenic Storage Tank for LNG LOX -196℃ to 50℃

Description

Fluid:	LNG, LOX, LIN, LAR, LCO2, Etc.	Outer Vessel Material:	Carbon Steel
Advantage:	High Efficiency	Working Temperature:	-196 - 50 ℃
Oxygen Tank:	15000Liters Liquid Oxygen Tank	Function:	Low Temperature Storage
Safety Valve:	Stainless Steel	Inner Diameter:	1200 Mm
Outer Cylinder Material:	Q245R	Type:	Vertical
Highlight:	5-100ton cryogenic storage tank , LNG LOX storage tank -196℃ , cryogenic tank with temperature range

5ton 10ton 20ton 100ton Cryogenic Storage Tank

This cryogenic storage tank features nitrogen protection to prevent oxidation of stored substances, ensuring stability and safety. The integrated heating and insulation system maintains optimal temperature in low-temperature environments, preventing material property changes or crystallization. The self-circulation system automatically circulates stored materials, maintaining uniformity and improving heat exchange efficiency for reliable storage performance.

Technical Specifications

Effective Volume (m³)	Maximum Working Pressure (MPa)	Empty Container Weight (kg)	Outline Dimension (Diameter × Height mm)
5	0.2	3623	1916×5260
	0.8	3825
	1.6	5118
10	0.2	5790	2316×5970
	0.8	6235
	1.6	10710
	2.0	13200
15	0.2	7805	2516×6875
	0.8	8033
	1.6	8531
20	0.2	9175	2516×8630
	0.8	9950
	1.6	12030
30	0.2	13527	2720×10230
	0.8	15100
	1.6	18110
50	0.2	18650	3020×12670
	0.8	21565
	1.6	26740
100	0.2	36570	3524×17040
	0.8	44595
	1.6	53550
150	0.2	60878	3928×20210
	0.8	72365
	1.6	88663
200	0.2	76838	4724×19192
	0.8	92143
	1.6	108440

Material Specifications:
1. Inner Material: 304/316 stainless steel
2. Outer Material: Q235b carbon steel
3. Applications: Industrial, medical, civil natural gas, and more

Manufacturing Advantages

17+ years of factory experience in production, manufacturing, and installation
OEM customization available according to your drawings and requirements
Professional R&D and QC teams ensuring strict quality control
Comprehensive service from production to packaging
High-quality products with competitive pricing and timely delivery
Dedicated sales team providing end-to-end support

We customize specifications based on your application (crude oil/LNG/chemical storage) and capacity requirements. Contact us for tailored solutions and quotations.
