50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified

50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified
50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified 50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified 50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified 50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified

Large Image :  50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Packaging Details: Airbag packaging/nude packing
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: Annual Production 30,000 tons
Contact Now

50 M³ Cryogenic Storage Tank for LNG, -196°C to 40°C, ASME Certified

Description
Temperature Range: -196°C To 40°C Width: 2438mm
Bottle Filling Rate: 95% Mainbody Material: 16MnDR/Q235-B
Piping Material: Stainless Steel Key Words: Cryogenic Liquid Storage Tank
Working Years Design: 20years Inner Material: Stainless Steel
Construction: Vertical Or Horizontal Type Certifications: ASME
Highlight:

50 M³ cryogenic storage tank for LNG

,

ASME certified cryogenic storage tank

,

LNG storage tank with -196°C capacity

50 M³ Cryogenic Storage Tank for Liquid Nitrogen/Oxygen/Natural Gas
Product Advantages
  • WEDDING TECHNOLOGY - Mechanical automatic welding under flux layer ensures stable welding quality, high productivity, and eliminates arc and smoke dust. Results in neat, smooth, and beautiful welds that extend product service life.
  • PAINTING TECHNOLOGY - Standard finish includes sandblasting, primer spraying, and polyurethane topcoat application for double-layer rust and anti-corrosion treatment. Special anti-corrosion types available for acidic/alkaline environments to extend product lifespan.
Product Parameters
Volume (m³) Pressure (bar) Size (mm) Weight (kg) Material Medium Filling Rate
5 8 Φ2000×5130 3412 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
10 8 Φ2100×7170 5378 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
15 8 Φ2500×6912 6415 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
20 8 Φ2500×8756 8255 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
30 8 Φ2900×8870 12899 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
50 8 Φ3100×12058 18960 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
100 8 Φ3600×15947 34480 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
5 16 Φ2000×5130 3945 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
10 16 Φ2000×7895 6787 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
15 16 Φ2400×7552 8628 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
20 16 Φ2400×9371 10744 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
30 16 Φ2700×10310 14640 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
50 16 Φ3100×12058 23370 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%
100 16 Φ3400×17930 44050 Outer: Q245-R; Inner:S30408 LOX,LN2,LAr 95%

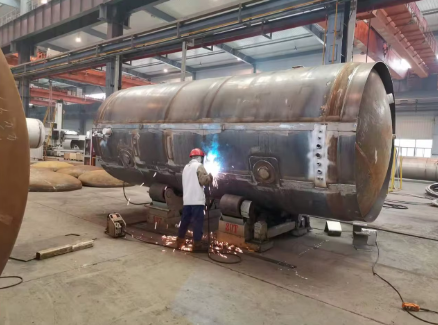

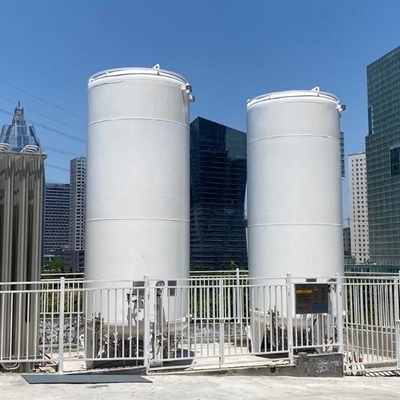

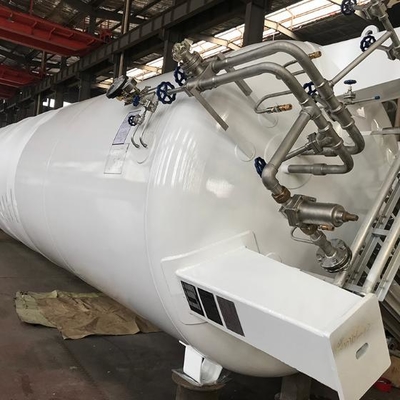

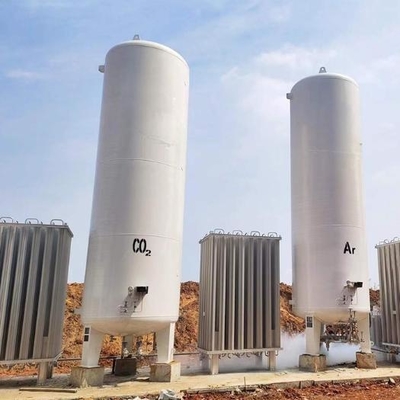

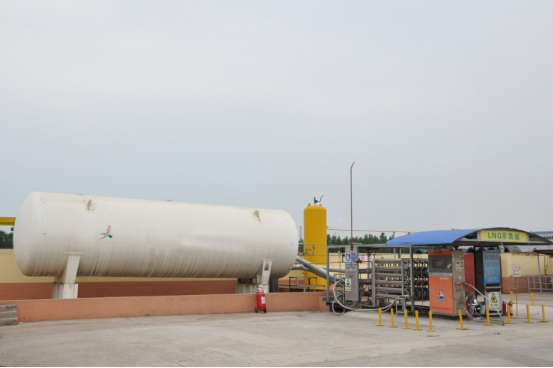

50 M³ Cryogenic Storage Tank - Front View 50 M³ Cryogenic Storage Tank - Side View 50 M³ Cryogenic Storage Tank - Welding Detail 50 M³ Cryogenic Storage Tank - Installation Example
Why Choose Us
  • Custom packaging options available (nude or according to customer requirements)
  • Professional installation, debugging, and startup services available upon request
  • 24-hour response guarantee for all customer inquiries
Your storage tank application scenario (e.g., storage of crude oil/LNG/chemical media) and capacity requirements vary - we provide customized solutions. Contact us for targeted parameters and quotations.
Email: info@gneeheatex.com
WhatsApp: +8615824687445
