Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon

Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon
Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon

Large Image :  Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Price: depend on product
Packaging Details: Wooden box packaging / Outer shell packaging
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Contact Now

Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon

Description
Test Pressure: 0.8MPa-1.6MPa Effective Volume: 5-200m3
Geometric Volume: 31.58m3 Inner Vessel Type: Double Wall
Capacitycapacity: 10000-100000 Litres Size: Customizable
Width: 2438mm Applicable Industries: Manufacturing Plant, Energy & Mining
Design Temperature: -40°C Material: Stainless Steel
Highlight:

5-200m3 cryogenic storage tank

,

oxygen nitrogen argon storage tank

,

large capacity cryogenic storage tank

Cryogenic Storage Tank for Oxygen, Nitrogen, Argon, CO₂, LNG
Product Description

Cryogenic liquid carbon dioxide storage tanks are double-layer containers composed of inner and outer vessels. They are of the vacuum powder insulation type and are available in both vertical and horizontal configurations. Widely used in industries such as industrial gas, hospitals, metal smelting, beverages, food freezing and transportation.

Product Parameters
Capacity (m³) Effective Capacity (m³) MAWP (MPa) Dimensions (mm) Weight (kg) Evaporation Rate (LN2 %/d) Gas Supply (m³/H) Insulation Type
11.1 10.0 0.8 6100×2216×2676 6840 0.55 350 Perlite
11.1 10.0 0.8 6400×2365×2350 7250 0.55 350 Perlite
16.0 14.4 0.8 8100×2216×2676 8730 0.53 350 Perlite
16.0 14.4 0.8 8400×2365×2350 9280 0.53 350 Perlite
20.8 18.7 0.8 10100×2216×2676 10720 0.5 350 Perlite
20.8 18.7 0.8 10400×2365×2350 11400 0.5 350 Perlite
30.4 27.4 0.8 10700×2624×2980 14970 0.44 500 Perlite
30.4 27.4 0.8 10730×2857×2740 15730 0.44 500 Perlite
60.0 54.0 0.8 14910×2920×3270 25380 0.31 800 Perlite
60.0 54.0 0.8 15220×3195×3000 27430 0.31 800 Perlite
30.0 27.0 1.2 9470×2620×3000 12610 0.2 / Insluated
60.0 54.0 1.2 13100×3020×3375 25560 0.31 / Perlite
60.0 54.0 1.2 13530×2924×3380 25050 0.14 / Vacuum
Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon 0 Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon 1 Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon 2

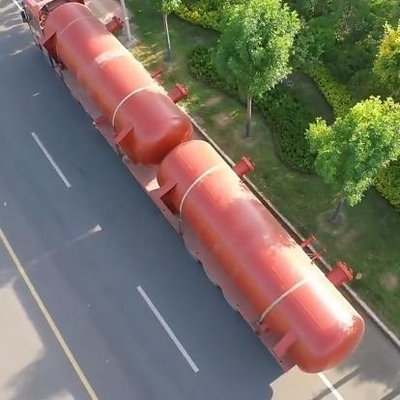

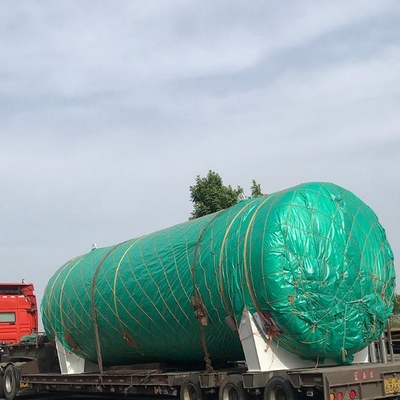

Products Shipment

We offer a diverse range of transportation options, including bulk cargo shipping and container shipping. For bulk cargo shipping, we use tarpaulins and cargo nets to package the tanks, ensuring moisture and corrosion resistance, providing worry-free safety. You can choose from ocean shipping, land transportation, or railway transportation based on your needs.

Cryogenic Storage Tank 5-200m3 Capacity for Oxygen Nitrogen Argon 3
Cryogenic Supply Systems

GNEE has four cryogenic supply systems available for argon, hydrogen, nitrogen, and oxygen. The primary components are designed to meet customer flow, pressure and purity requirements, maintaining consistent product pressure and purity.

  • Cryogenic storage vessels - sized to meet customer requirements
  • Vaporizers - convert cryogenic liquid to near ambient temperature gas
  • Safety Systems - engineered to prevent over-pressure or low-temperature hazards
Need Assistance?

Unsure whether the specific specifications of the storage tank match your production needs? Contact our professional team for recommendations based on your working conditions (site, medium, production capacity).

Email: info@gneeheatex.com
WhatsApp: +8615824687445

Tag:

25m3 Cryogenic Storage Tank,

Vacuum LNG storage facilities,

2.16mpa liquid nitrogen storage container
