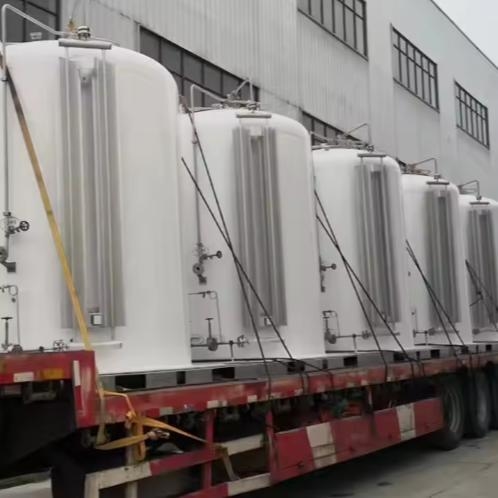

ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C

ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C
ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C

Large Image :  ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Price: depend on product
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: Wooden box packaging / Outer shell packaging
Contact Now

ASME Standard 20ft Cryogenic Storage Tank 1.6MPa -196°C

Description
Test Pressure: 0.8MPa-1.6MPa Operating Pressure: 1.6MPa
Temperature Range: -196°C To 50°C Width: 2438mm
Safety Valve: Stainless Steel Inner Vessel Type: Double-walled
Material: Stainless Steel Effective Volume: 5-200m3
Highlight:

ASME cryogenic storage tank 20ft

,

1.6MPa cryogenic storage tank

,

-196°C cryogenic storage tank

ASME Standard 20ft SGS Tank Cryogenic Storage Tank
Cryogenic storage tanks are designed for storing acid, alkali, alcohol, gas, liquid and other refined chemical substances. These tanks are widely used in North China and come in various materials including polyethylene, polypropylene, fiberglass, ceramic, rubber, and stainless steel.
The steel-lined polyethylene storage tank offers superior cost performance with excellent corrosion resistance, high strength, and long lifespan. Available in multiple configurations including horizontal, transportable, and mixing variants.
Product Parameters
Capacity (m³) Effective Capacity (m³) MAWP (MPa) Dimensions (mm) Weight (kg) Evaporation Rate (LN2) %/d Gas Supply (m³/H) Insulation Type
11.1 10.0 0.8 6100×2216×2676 6840 0.55 350 Perlite
11.1 10.0 0.8 6400×2365×2350 7250 0.55 350 Perlite
16.0 14.4 0.8 8100×2216×2676 8730 0.53 350 Perlite
16.0 14.4 0.8 8400×2365×2350 9280 0.53 350 Perlite
20.8 18.7 0.8 10100×2216×2676 10720 0.5 350 Perlite
20.8 18.7 0.8 10400×2365×2350 11400 0.5 350 Perlite
30.4 27.4 0.8 10700×2624×2980 14970 0.44 500 Perlite
30.4 27.4 0.8 10730×2857×2740 15730 0.44 500 Perlite
60.0 54.0 0.8 14910×2920×3270 25380 0.31 800 Perlite
60.0 54.0 0.8 15220×3195×3000 27430 0.31 800 Perlite
30.0 27.0 1.2 9470×2620×3000 12610 0.2 / Insluated
60.0 54.0 1.2 13100×3020×3375 25560 0.31 / Perlite
60.0 54.0 1.2 13530×2924×3380 25050 0.14 / Vacuum
Cryogenic Tank Features

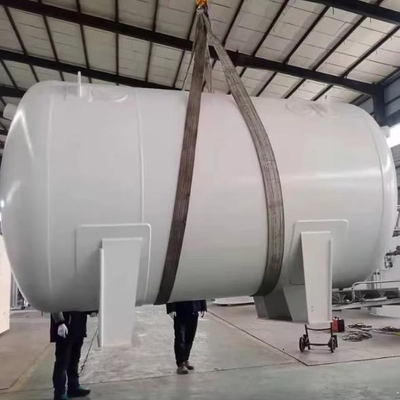

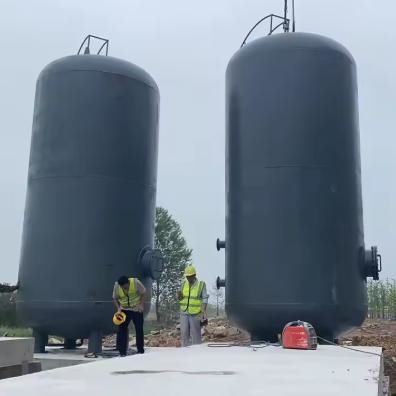

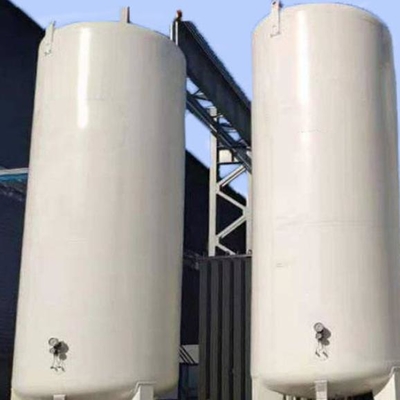

Cryogenic storage tanks are designed for liquefied gases under pressure at cryogenic temperatures, including LNG, N2, O2, Ar, and CO2. The system consists of two vessels (one inside the other) with robust thermal insulation in the chamber between them. Available in both vertical (with legs/skirting) and horizontal (with support cradles) configurations.
Design Specifications
  • Complies with ASME, GB150, and GB18442 standards
  • Inner pressure vessel constructed from austenitic stainless steel or materials with superior strength at cryogenic temperatures
  • Advanced insulation system with insulating material and high vacuum for minimal product loss and extended storage capability
  • Outer vessel made of carbon steel or stainless steel to maintain insulation and vacuum integrity
Custom Solutions Available
Need storage tank specifications tailored to your requirements (vertical/horizontal structure, anti-corrosion grade, sealing solution)? Contact our experts for a customized solution.
Email: info@gneeheatex.com
WhatsApp: +8615824687445
