ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG

ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG
ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG

Large Image :  ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG

Product Details:
Place of Origin: CHINA
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: ≥1sets
Price: depend on product
Delivery Time: Transit time: Est. 17-24 days
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Contact Now

ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG

Description
Inner Vessel Type: Double-walled Function: Low Temperature Storage
Type: Vertical Horizonta Custom Design: Provided
Contents: LO2,LN2,Lar,LCO2,LNG. Durable Years: 20 Years
Geometric Volume: 10.520m3 Working Temperature: -196 - 50 ℃
Pressure Range: 0.2 MPa To 3.5 MPa Width: 2438mm
Highlight:

ASME cryogenic storage tank 10.5m3

,

cryogenic storage tank for LOX LIN

,

LNG storage tank with ASME certification

High Quality Cryogenic Storage Tank for LOX LIN LCO2 With ASME Standard
Cryogenic Liquid Storage Tanks
With rapid scientific and technological development, the material storage technology using low temperature storage tanks under normal temperature has become increasingly mature. In China, more normal-pressure low temperature storage tanks are being constructed, with a trend toward larger-scale types. Compared with other storage methods, normal pressure storage tanks offer significant advantages including enhanced safety due to low storage pressure, smaller footprint for large-scale storage, reduced construction costs due to simple structure, and compatibility with various storage media.
Product Parameters
External Dimension (mm) WP (Mpa) Net Weight (kg) Full-load Weight (kg)
φ2000*4414 2.2 4330 9640 (LCO2)
φ2000*7024 2.2 6707 16967 (LCO2)
φ2500*6446 2.2 9150 24405 (LCO2)
φ2500*7958 2.2 11680 32020 (LCO2)
φ2500*10993 2.2 16138 46648 (LCO2)
φ3000*12738 2.2 28420 79270 (LCO2)
φ3500*17593 2.2 54260 155960 (LCO2)

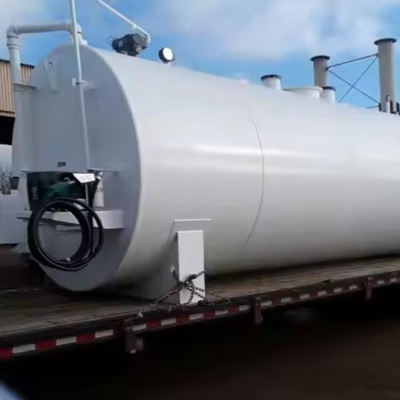

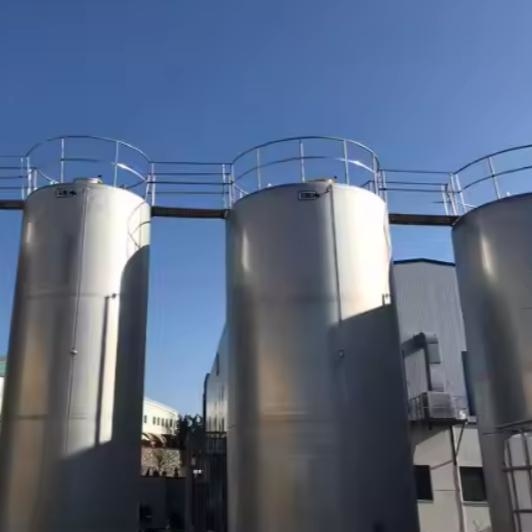

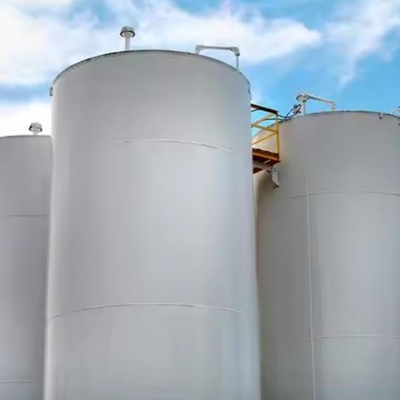

ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG 0 ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG 1 ASME Cryogenic Storage Tank 10.5m3 for LOX LIN LCO2 LNG 2
Key Features
  • Complies with international standards (ASME/EN) and global transportation regulations
  • Built-in temperature measurement device for real-time liquid temperature monitoring
  • Advanced design and manufacturing process enables extended LNG storage (minimum 94 days)
  • Available in 20ft (19.8m³) with medium pressure (16bar) and high pressure (22bar) options
  • 40ft models available in 41.5m³ (11.5bar) with end valve design or 45m³ (11.5bar) with side valve design
  • Optional full-frame structure for protection during lifting and transportation
Customization & Contact
For specific dimensions, design standards, and compatible medium requirements, contact us for a customized specification plan:
WhatsApp: +86 15824687445
