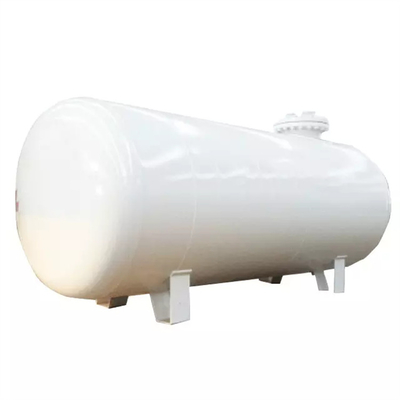

Product Details:
|
| Capacity: | 100cbm | Working Pressure: | 1.6 Mpa |
|---|---|---|---|
| Volume: | 5000L To 200000L | Dimension(L*W*H): | Optional |
| Weight: | 1-100 TONS | Max Working Pressure(MPa): | 2.11 MPa |
| High Light: | Carbon Steel Lpg Tank,Iso Lpg Gas Storage Tank,Lpg Gas Storage Tank 100m3 |
||

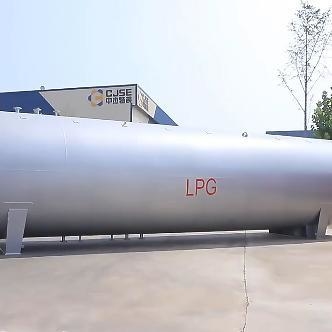

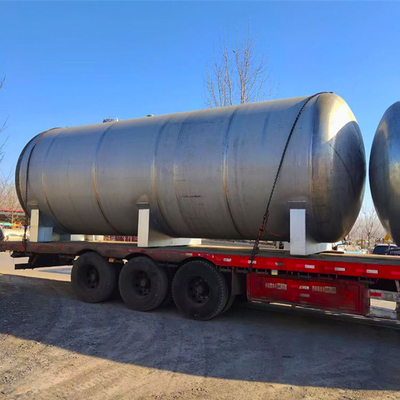

The volumes of the storage tanks are mainly from 5cbm to 200cbm. The working medium includes LPG, ammonia, ether, etc. The materials could be carbon steel, aluminum, stainless steel, etc.
The basic equipment includes manhole, joint for safety valve, exit for air discharge, joint for liquid indicator, liquid inlet,gas phase equilibrium mouth, liquid phase outlet, liquid discharge, etc.The optional equipment includes liquid indicator, safety valve, temperature gauge, pressure meter, etc.For the safe usage of the LPG products, we process several test for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc
| TYPE | MODEL | VALID CAPACITY (m³) |
WORKING PRESSURE (Mpa) |
DIMENSIONS (mm) |
| LPG Tank ( Ground ) |
WG 1.77-1400-005 | 5 | 1.77 | 1400*2750 |
| WG 1.77-1400-010 | 10 | 1.77 | 1400*5980 | |
| WG 1.77-1400-010 | 10 | 1.77 | 1600*4400 | |
| WG 1.77-1400-020 | 20 | 1.77 | 2000*5650 | |
| WG 1.77-1400-025 | 25 | 1.77 | 2200*5800 | |
| WG 1.77-1400-030 | 30 | 1.77 | 2200*7100 | |
| WG 1.77-1400-040 | 40 | 1.77 | 2600*6600 | |
| WG 1.77-1400-050 | 50 | 1.77 | 2600*8500 | |
| WG 1.77-1400-060 | 60 | 1.77 | 2600*10360 | |
| WG 1.77-1400-100 | 100 | 1.77 | 3000*13200 | |
| WG 1.77-1400-120 | 120 | 1.77 | 3600*10500 | |
| WG 1.77-1400-150 | 150 | 1.77 | 3600*13500 | |
| WG 1.77-1400-200 | 200 | 1.77 | 3800*16300 |
1) We are the largest lpg tanks production base of China
2) We adopt high quality steel materials for our lpg storage tank
3) We have perfect quality assurance system
4) We have complete welding process
5) We are on the leading manufacturer of pressure vessel with more than 30 years experiences
6) We also have advanced technology and equipment to ensure goods quality
